Brian Tooley Racing BTRROD6125H1-8 4340 Forged H Beam Connecting Rods w/ARP Bolts, 6.125″ Long Set Of 8 For LS Engines

Fits Vehicle: LS Engines

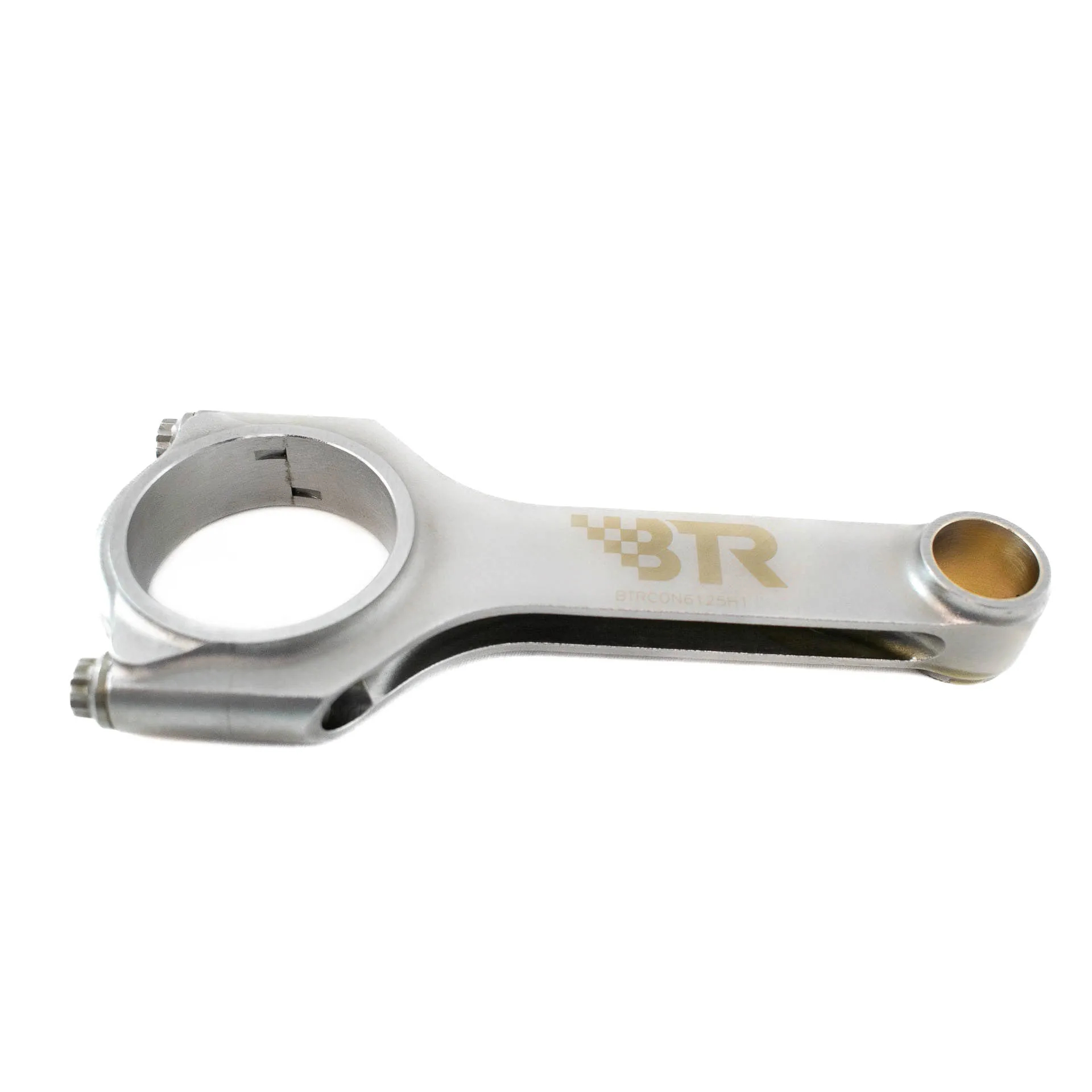

State of the art 4340 H-Beam Connecting Rod. They feature heat-treated, stress relieved  and shot peened bodies. The C/L-C/L length is 6.125″ with a 2.100 bearing housing and bronze bushed .9278″ pin bore. The cap and rod are serialized at the parting line to ensure proper mating after disassembly. BTR inspects them for bearing housing dia. , pin bore dia. ,bend/twist and C/L length. They are pre-torqued with high pressure lube and 7/16-20 x 1.600″ ARP 2000 bolts. Sets of 8 are matched within 2 grams overall. The rods weigh in at approx. 665 grams. Laser marked on the beam with the BTR logo, the rods are individually bagged (VCI) and sealed. They are boxed in sets of 8 or sold separately.

Part Type Connecting Rods
Connecting Rod Style H-Beam
Rod Length 6.125″
Piston Pin Size .927″
Rod Journal Size 2.100″
