Camburg 07-21 Toyota Tundra 2wd/4wd 1.5 Shackles

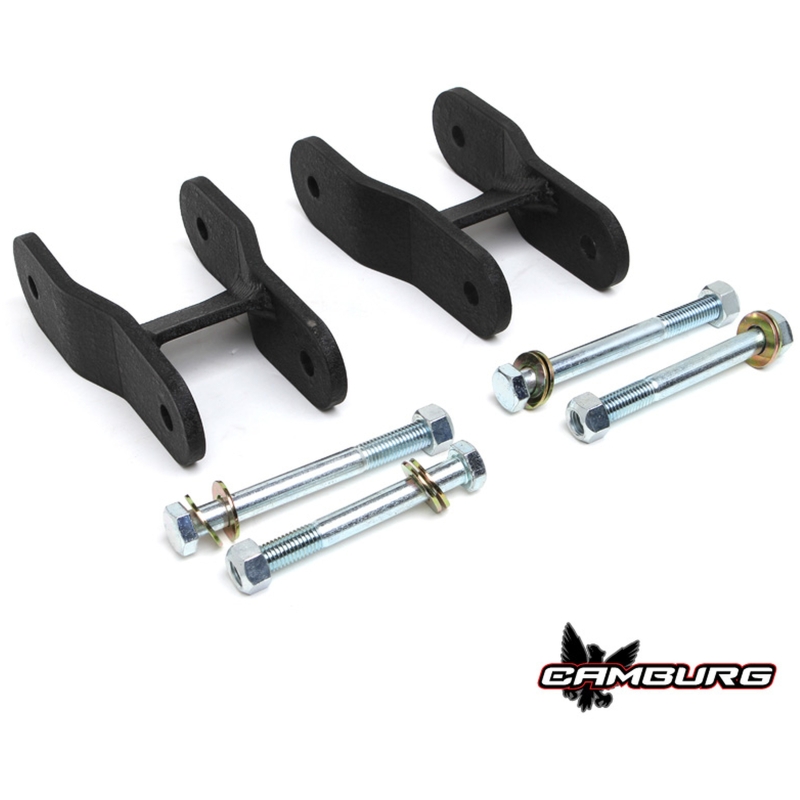

You can easily lift the rear of your Tundra with our 1.5 lift shackles. Not only are they longer than stock to give you the lift you’re looking without stiffening the ride, but are built considerably stronger too. The stock shackles are just stamped out of thin metal and bolted together allowing for quite a bit of unwanted flex. Our Camburg shackles are laser cut from thick 3/8″ steel and have a welded in gusset bridging the side plates together to eliminate flex. We powder coat them wrinkle black and supply new metric bolts and hardware to bolt right into the factory mounts. These measure 6″ bolt to bolt center in length, the stock shackles measure 4″. When using these with the stock leaf springs you may need to grind the serrated teeth on the leaf spring pivot sleeves so it slips into our shackle. These shackles are also needed when running Deaver’s K-37 or U-748 leaf spring packs as the stock shackle is too short in length. When installing, have the M14 bolts with the lock nuts to the outside on both sides and you will re-use the upper sleeve in the frame pivot bushings. Orientate the shackle like pictured above so that the center gusset clears the frame as it swings back. Mig welded Internal gusset Extended length Increased wheel travel Smoother action and less deflection.
Camburg Toyota Tundra 2wd/4wd ’07-21 1.50″ Shackles
Need further assistance? Call 1-714-848-8880.

• CAD Designed, CNC Laser Cut and Formed
• Smoother action and less deflection
• Made in the USA

Fits
2007 Toyota Tundra Base
2007 Toyota Tundra Limited
2007 Toyota Tundra SR5
2008 Toyota Tundra Base
2008 Toyota Tundra Limited
2008 Toyota Tundra SR5
2009 Toyota Tundra Base
2009 Toyota Tundra Limited
2009 Toyota Tundra SR5
2010 Toyota Tundra Base
2010 Toyota Tundra Limited
2010 Toyota Tundra Platinum
2010 Toyota Tundra SR5
2011 Toyota Tundra Base
2011 Toyota Tundra Limited
2011 Toyota Tundra Platinum
2011 Toyota Tundra SR5
2012 Toyota Tundra Base
2012 Toyota Tundra Limited
2012 Toyota Tundra Platinum
2013 Toyota Tundra Base
2013 Toyota Tundra Limited
2013 Toyota Tundra Platinum
2014 Toyota Tundra 1794 Edition
2014 Toyota Tundra Limited
2014 Toyota Tundra Platinum
2014 Toyota Tundra SR
2014 Toyota Tundra SR5
2015 Toyota Tundra 1794 Edition
2015 Toyota Tundra Limited
2015 Toyota Tundra Platinum
2015 Toyota Tundra SR
2015 Toyota Tundra SR5
2015 Toyota Tundra TRD Pro
2016 Toyota Tundra 1794 Edition
2016 Toyota Tundra Limited
2016 Toyota Tundra Platinum
2016 Toyota Tundra SR
2016 Toyota Tundra SR5
2016 Toyota Tundra TRD Pro
2017 Toyota Tundra 1794 Edition
2017 Toyota Tundra Limited
2017 Toyota Tundra Platinum
2017 Toyota Tundra SR
2017 Toyota Tundra SR5
2017 Toyota Tundra TRD Pro
2018 Toyota Tundra 1794 Edition
2018 Toyota Tundra Limited
2018 Toyota Tundra Platinum
2018 Toyota Tundra SR
2018 Toyota Tundra SR5
2019 Toyota Tundra 1794 Edition
2019 Toyota Tundra Limited
2019 Toyota Tundra Platinum
2019 Toyota Tundra SR
2019 Toyota Tundra SR5
2019 Toyota Tundra TRD Pro
2020 Toyota Tundra 1794 Edition
2020 Toyota Tundra Limited
2020 Toyota Tundra Platinum
2020 Toyota Tundra SR
2020 Toyota Tundra SR5
2020 Toyota Tundra TRD Pro
2021 Toyota Tundra 1794 Edition
2021 Toyota Tundra Limited
2021 Toyota Tundra Nightshade
2021 Toyota Tundra Platinum
2021 Toyota Tundra SR
2021 Toyota Tundra SR5
2021 Toyota Tundra Trail
2021 Toyota Tundra TRD Pro

Weight	10.6 lbs
Dimensions	10.1 × 8.4 × 4.2 in
air_freight_prohibited	false
not_carb_approved	false
carb_acknowledgement_required	false
ltl_freight_required	false
prop_65	N
part_type	automotive
epa	N/A
regular_stock	t
units_per_sku	1
upc	888563187396
brand	Camburg
part_number	CAM-320002
