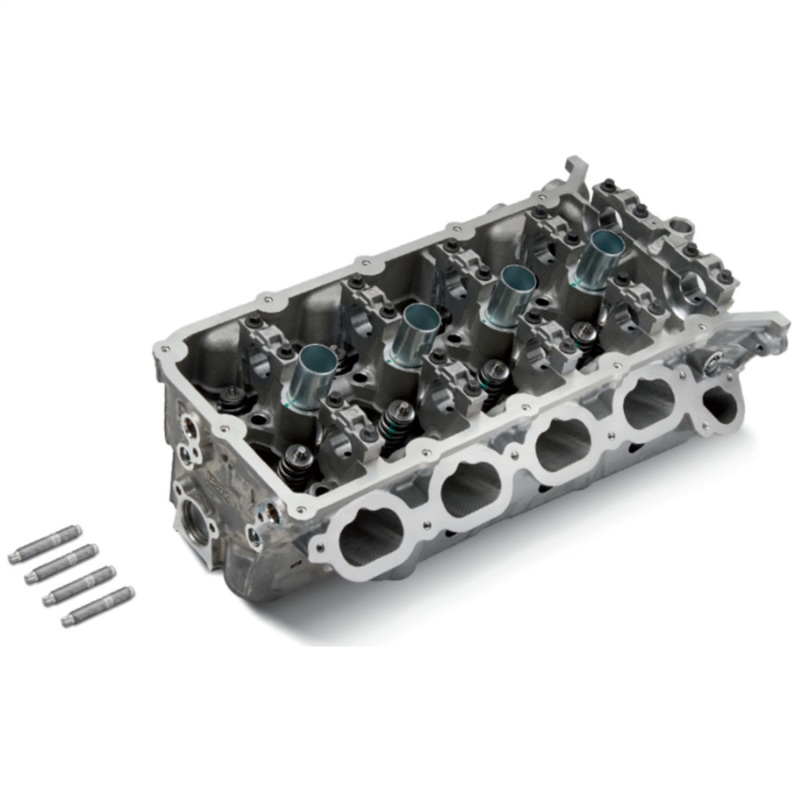

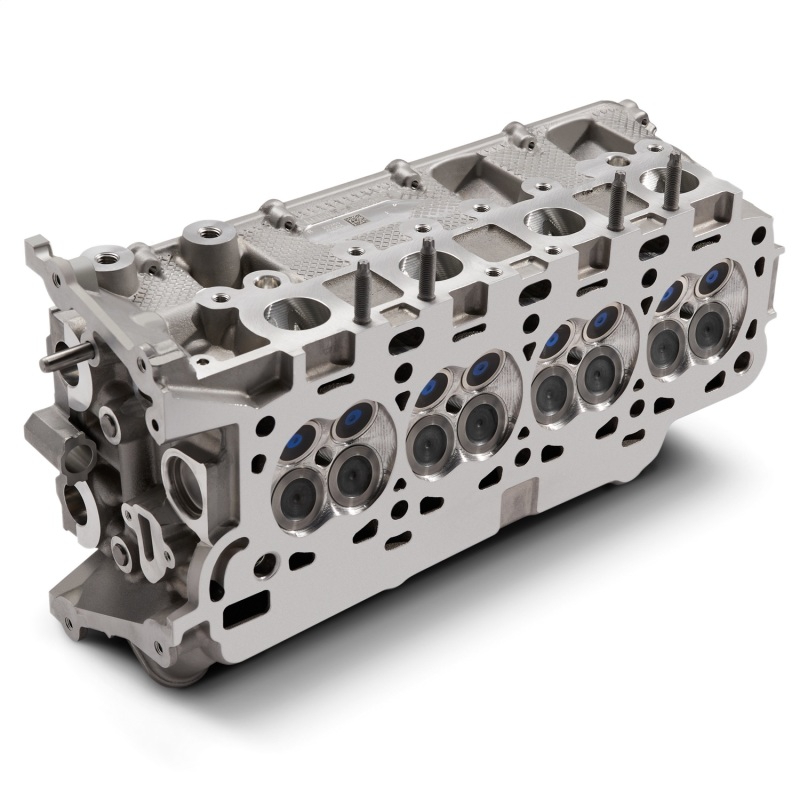

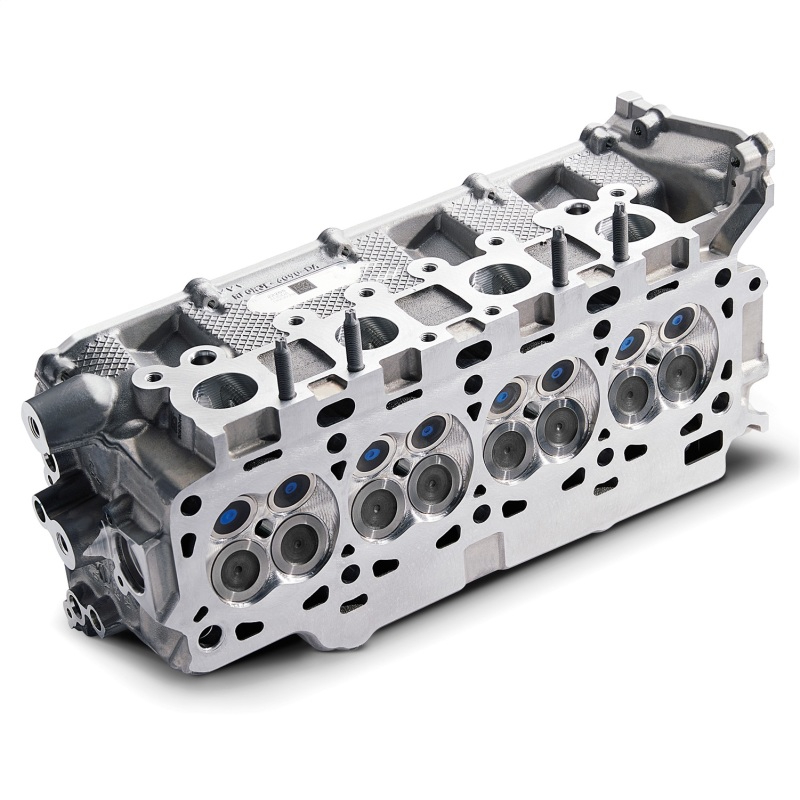

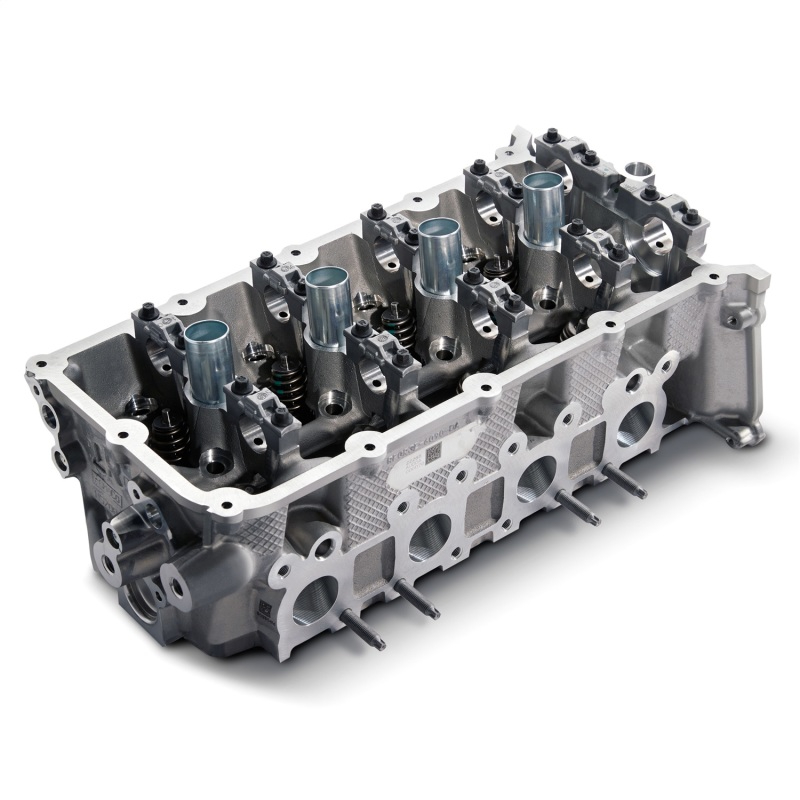

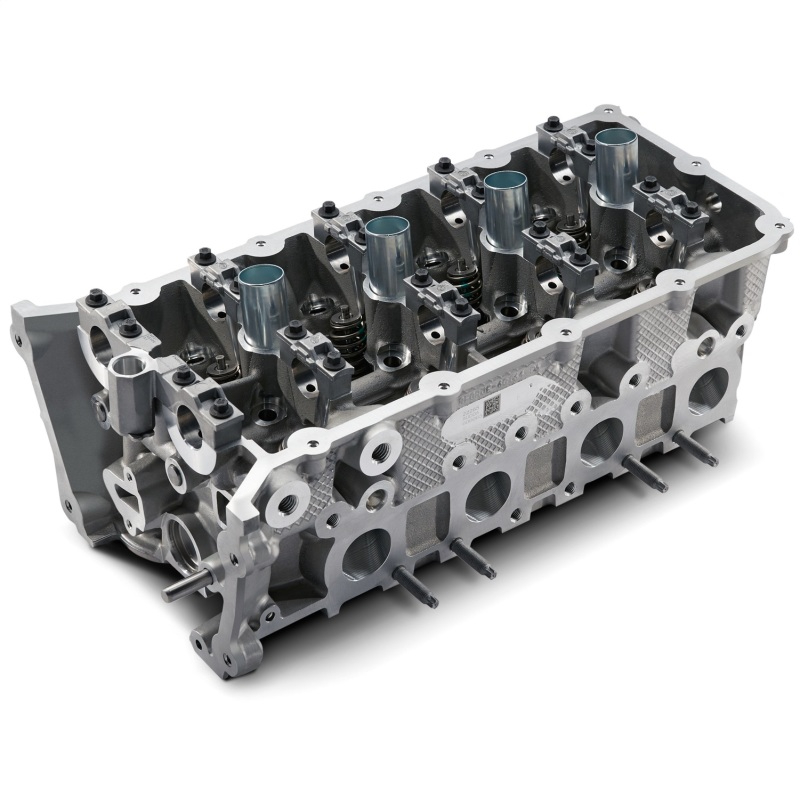

Ford Performance M-6050-M52B Cylinder Head

Fits Vehicle:

2020-2022 Ford Mustang GT500

SKU: M-6050-M52B

• Upgraded version of Ford Performance M-6050-M52A 5.2L cylinder head
• Production 2021 GT500 LH cylinder head
• Improved high-performance 5.2L head castings provide added strength and increased size of central cooling passages, to support higher horsepower engine builds
• Fully CNC ported intake ports, exhaust ports, and combustion chamber
• Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
• 38.2mm intake valve and 32.5mm exhaust valve
• For reference, 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
• New valvetrain geometry allows for higher valve lift
• Lightweight hollow-stem intake valves and sodium-filled exhaust valves
• Stiffer exhaust springs
• Upgraded valve guides
• Upgraded exhaust valve seats
• Loaded head assembly minus camshafts, rocker arms and lash adjusters
• Use on a 5.0L Coyote requires unique camshaft due to valvetrain geometry, see M-6550-M52 or M-6550-M52A
• Requires 5.2L rocker arms and lash adjusters, see  M-6564-M52
• Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance
• For RH cylinder head see M-6049-M52B

Brand

Ford Performance
