$665.99
Out of stock
Description

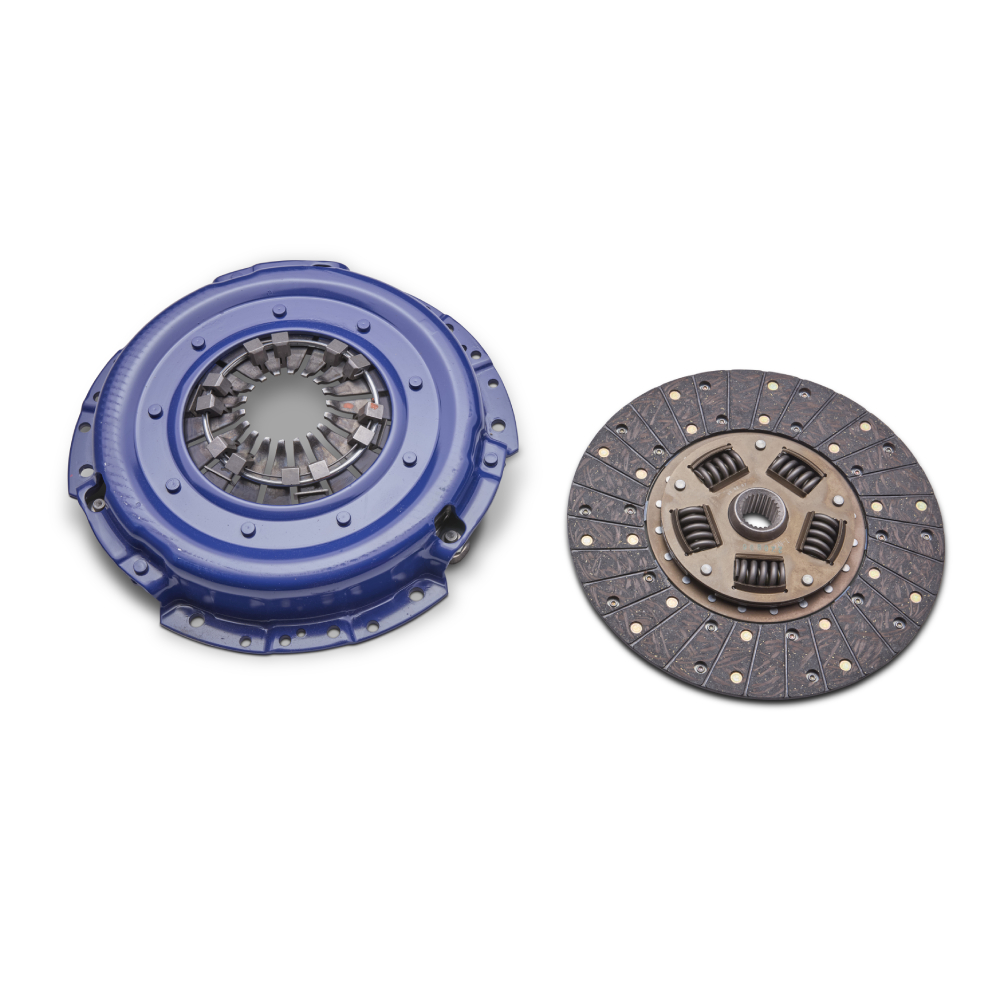

Ford Performance M-7560-T46 Clutch Kit for 1996-2004 Ford Mustang 4.6L
Fits Vehicle:
1996-2004 Ford Mustang 4.6L
SKU: M-7560-T46
| CLUTCHES | ||||
|---|---|---|---|---|
| PART NUMBER | DESCRIPTION | ENGINE | DIAMETER | TECHNICAL INFORMATION |
| M-7550-A302N (1)(2)(3) |
Disc | V-8 | 10.5″ | HD organic lining. Component of M-7560-A302N/C302N kits. |
| M-7550-X302 (1)(2)(3) |
Disc | V-8 | 10.5″ | HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. |
| M-7550-T302 (1)3 |
Disc | V-8 | 10.5″ | HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Designed for 26 spline shaft on M-7003-R58C, and M-7003-R58H transmissions. Will work with M-7563-A302N/B302/C302N/D302 pressure plates. |
| M-7563-A302N (1)(3)(4) |
Pressure Plate | V-8 | 10.5″ | HD diaphragm type with approx. 40% more capacity than stock Mustang unit. Nodular iron plate. |
| M-7563-B302 (1)(3)(4) |
Pressure Plate | V-8 | 10.5″ | HD diaphragm type with centrifugal assist. Has approx. 25% more capacity than stock Mustang unit. Cast iron plate. |
| M-7563-C302N (1)(3)(4) |
Pressure Plate | V-8 | 10.5″ | HD “King Cobra” diaphragm type. Same capacity a M-7563-A302N above but stronger cover and revised internal geometry reduce clutch edal effort by 10%. Nodular iron plate. |
| M-7560-A302N (1)(2)(3)(4) |
Mustang HD Kit | V-8 | 10.5″ | Consists of M-7550-A302N disc, M-7563-A302N pressure plate and D9ZZ-7548-A throwout bearing. |
| M-7560-C302N (1)(2)(3)(4) |
Mustang HD “King Cobra” Kit | V-8 | 10.5″ | Consists of M-7550-A302N disc, M-7563-C302N pressure plate and D9ZZ-7548-A throwout bearing. |
| M-7560-T46 (1) |

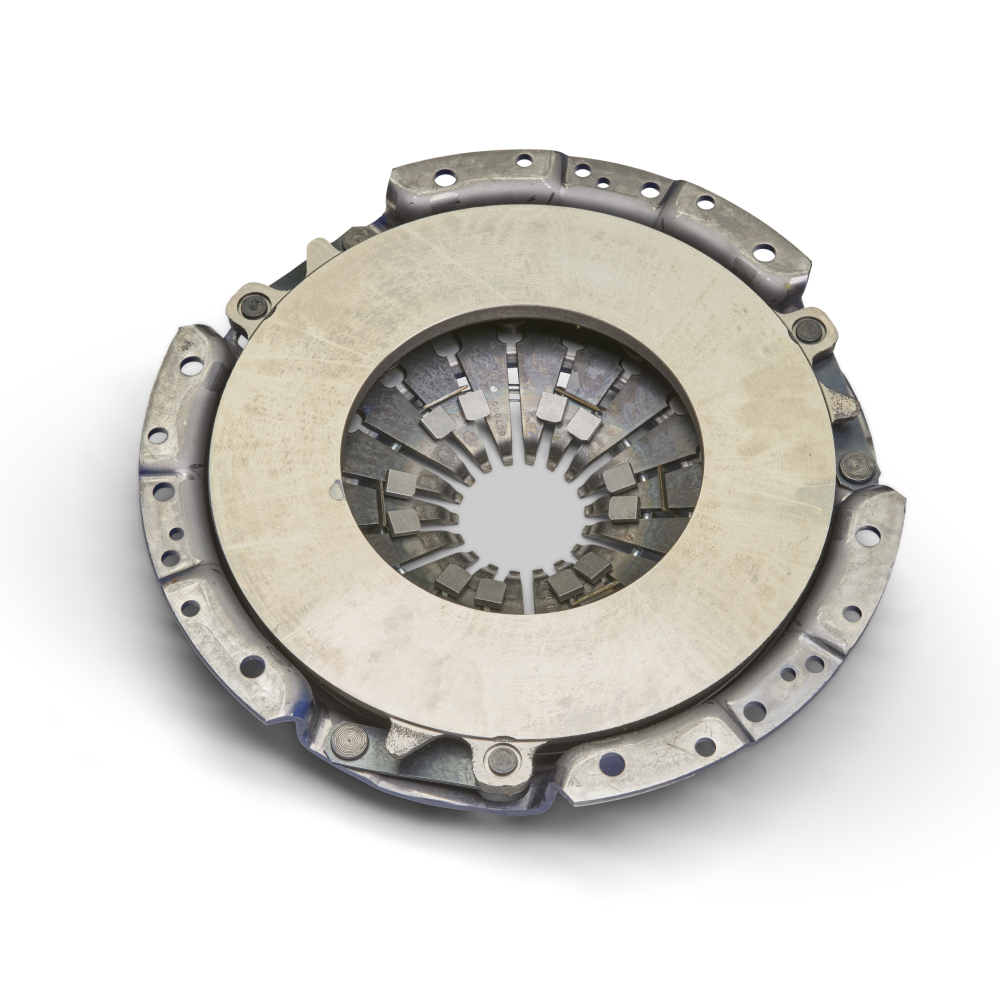

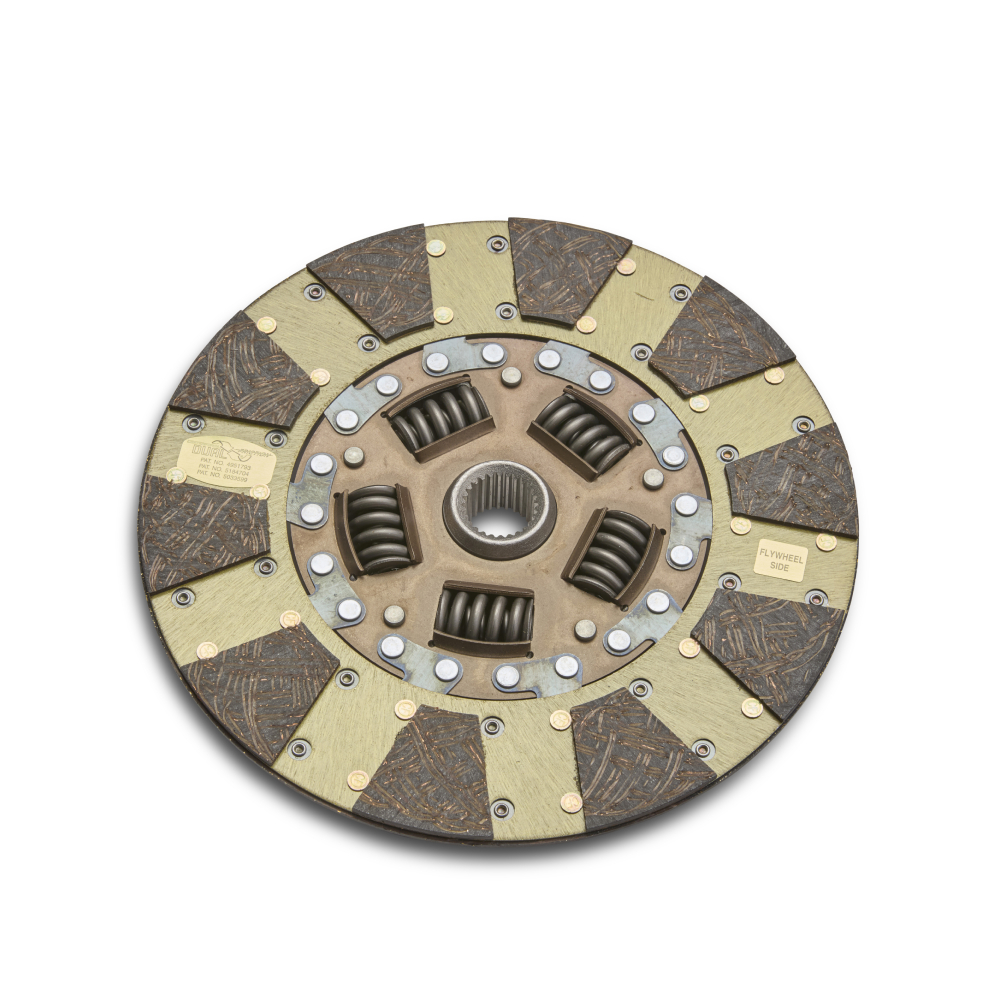

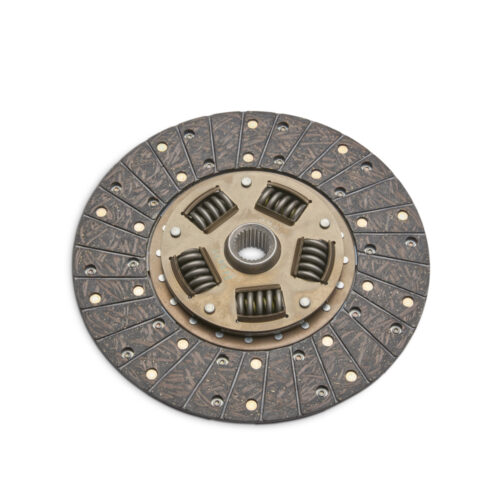

11″ Clutch Kit | 4.6L | 11″ | Kit contains 11” clutch disc with 26 spline hub and pressure plate. Clutch disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Centrifugal assist design pressure plate with 25% more torque capacity then production Cobra. Used when installing M-7003-TKX68 and M-7003-TKX81 transmissions into 1996-04 4.6L Mustangs with production 11” flywheel or Ford Racing flywheels M-6375-F46A or M-6375-G46A. |
| M-7060-C46 (1)(2) |
11″ Clutch Upgrade Kit |
4.6L DOHC | 11″ | This kit increases clutch capacity by 10% on 1996-98 Cobra 4V vehicles. It consists of the production 1999 Cobra 4V flywheel, 11″ clutch/pressure plate assembly and attaching bolts/dowel pins to replace the 10.5″ clutch assembly in the 1996-98 Cobra 4V vehicles. |
| M-7060-A54 (1) |
2007-08 SVT Mustang Clutch Kit |
5.4L | 215mm | Kit contains 26 spline dual disc clutch, pressure plate, pressure plate attaching bolts and flywheel. Original equipment on 2007-08 SVT Mustang. |
| M-7560-D46 (1)(2) |
11″ Clutch Kit | V-8 | 11″ | This kit increases clutch capacity of the 1996-98 Mustang Cobra 4.6L DOHC 4V by 10% (requires flywheel M-6375-G46 or equivalent) and increases clutch disc burst speed 10% over 1999-01 Cobra. Kit contains 2003 Cobra 11″ pressure plate and 11″ clutch disc. |
-
- NOTES:
1
-
- Clutches have NO warranty!
2
-
- All clutch discs have 1.0625″-10 spline hub.
3
-
- Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions. 2001-04 Mustang GT with 3650 transmission and 1999-03 Cobra uses an 11″ clutch. OK to mix and match Ford Racing clutch discs and pressure plates but do NOT install a FRPP pressure plate with a stock disc or vice-versa as disengagement problems may occur. Installation of 10.5″ clutch assemblies on 1979-85 vehicles equipped with 10″ clutch requires new flywheel. Metric fasteners and dowel pins must be used with 10.5″ clutches.
4
-
- Requires metric pressure plate bolts N602549-S51M and alignment dowel pins D1FZ-6397-B. Ford Racing kit M-6397-A302
Additional information
| Weight | 27.5 lbs |
|---|---|
| Dimensions | 13.5 × 13.5 × 3.5 in |
