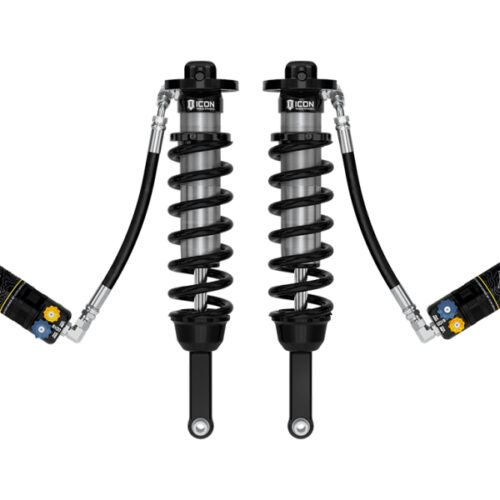

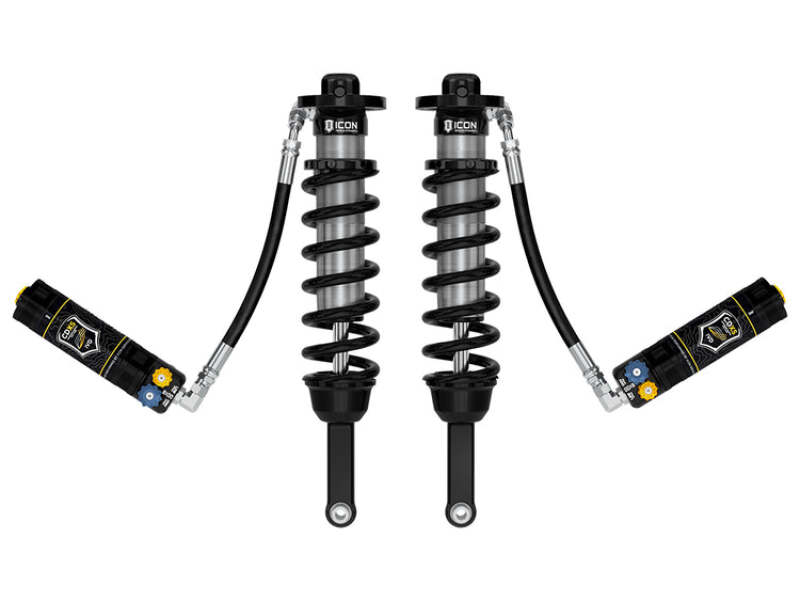

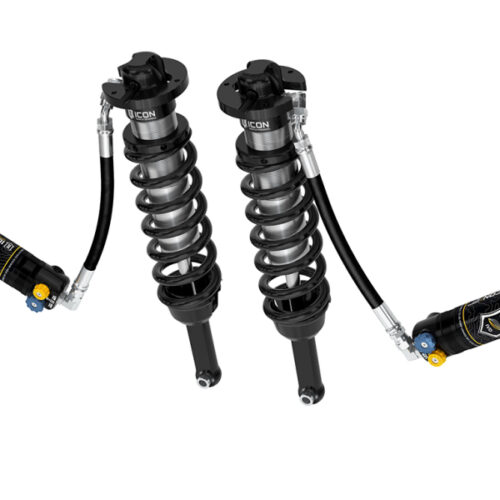

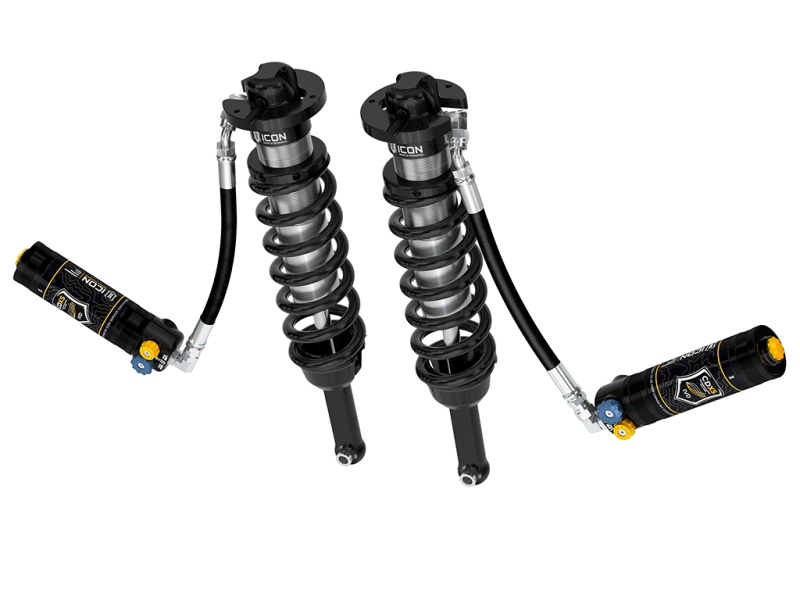

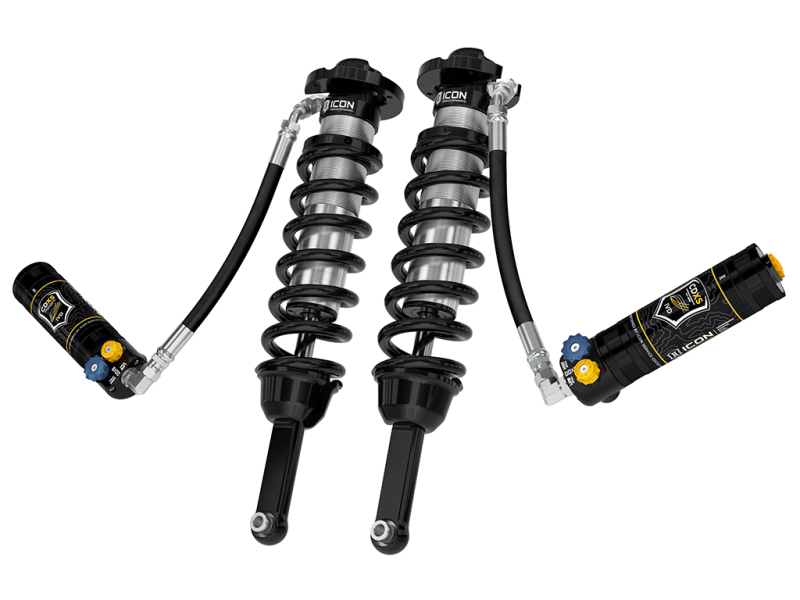

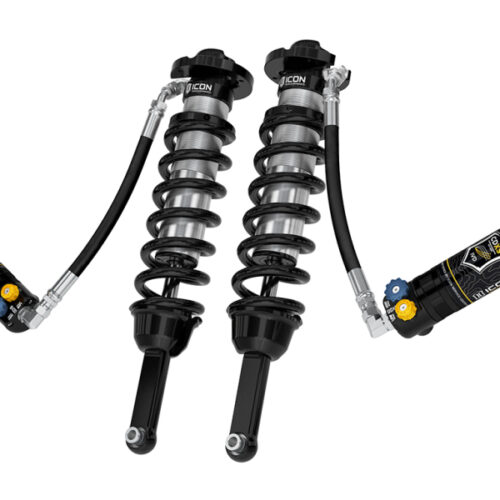

ICON 05-23 Toyota Tacoma Front VS 2.5 Series Remote Resi CDXS Coilover Kit – Pair

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)

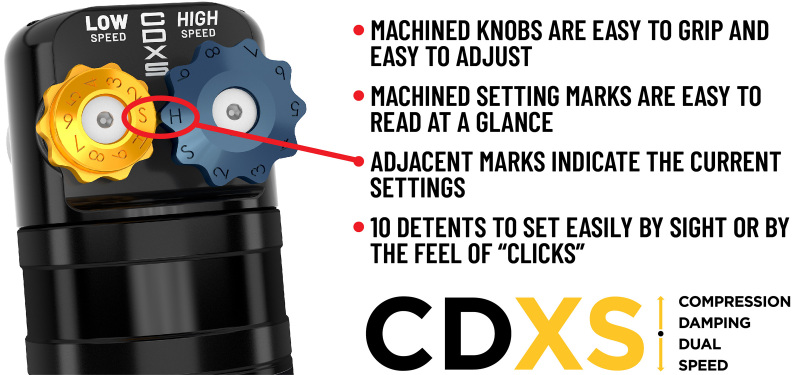

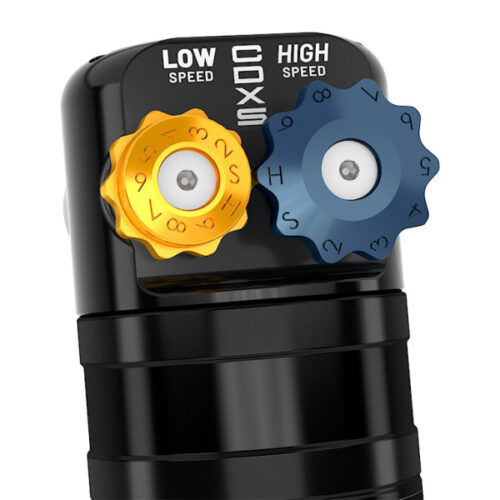

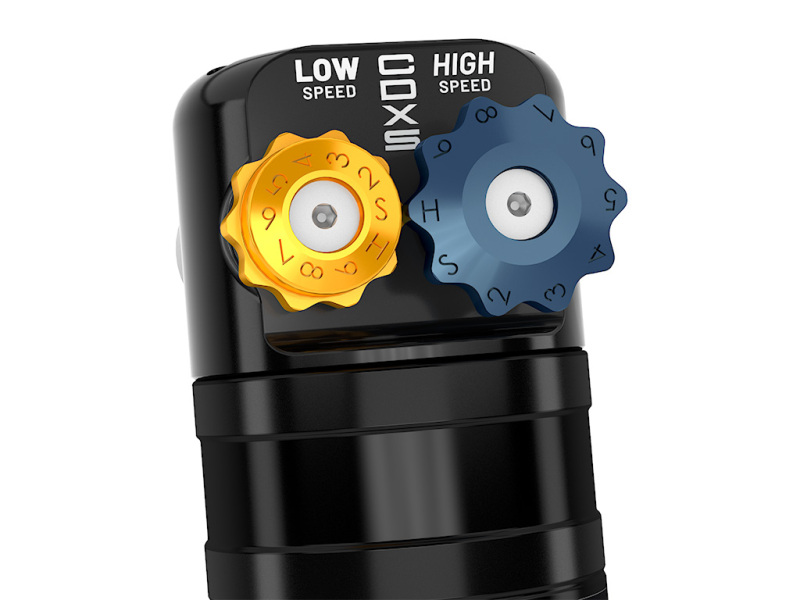

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• Height-adjustable coilovers offer 0-3.5″ or 0-2.75″ of lift height adjustment depending on year model
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Vehicle specific tuned for superior shock damping and control
• Hose Length Optimized for Increased Fluid Transfer

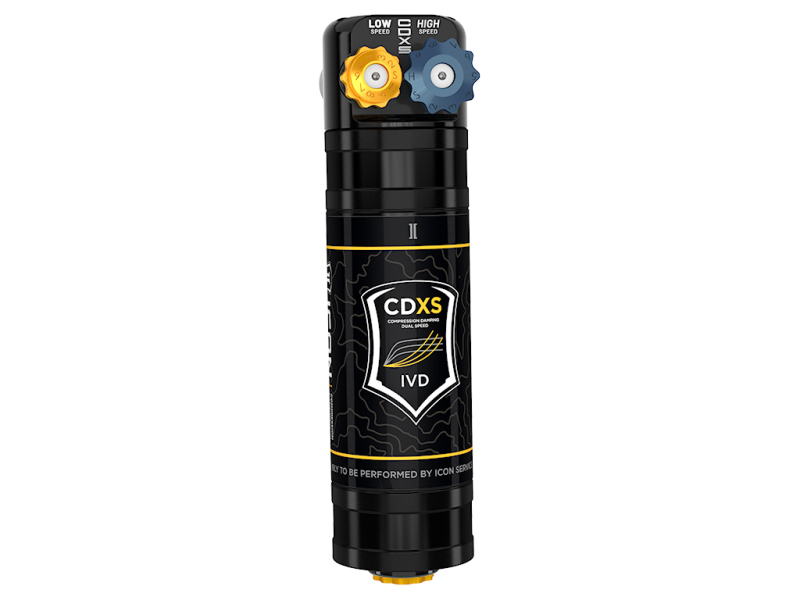

• External Reservoirs Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• 5/8″ PTFE-lined spherical bearings

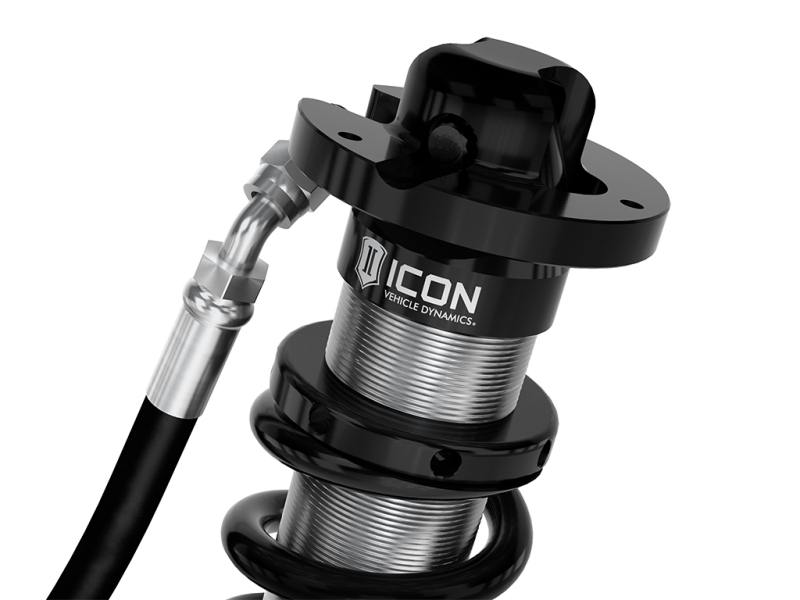

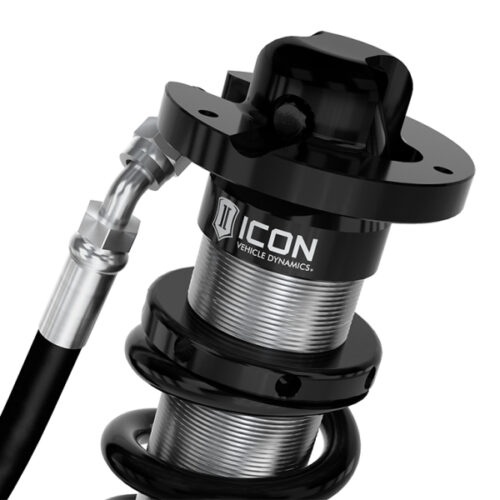

• Billet aluminum upper mount
• CAD-plated threaded body
• Completely re-buildable

Fits
2005 Toyota Tacoma Base
2005 Toyota Tacoma Pre Runner
2006 Toyota Tacoma Base
2006 Toyota Tacoma Pre Runner
2007 Toyota Tacoma Base
2007 Toyota Tacoma Pre Runner
2008 Toyota Tacoma Base
2008 Toyota Tacoma Pre Runner
2009 Toyota Tacoma Base
2009 Toyota Tacoma Pre Runner
2010 Toyota Tacoma Base
2010 Toyota Tacoma Pre Runner
2011 Toyota Tacoma Base
2011 Toyota Tacoma Pre Runner
2012 Toyota Tacoma Base
2012 Toyota Tacoma Pre Runner
2013 Toyota Tacoma Base
2013 Toyota Tacoma Pre Runner
2014 Toyota Tacoma Base
2014 Toyota Tacoma Pre Runner
2015 Toyota Tacoma Base
2015 Toyota Tacoma Pre Runner
2015 Toyota Tacoma TRD Pro
2016 Toyota Tacoma Limited
2016 Toyota Tacoma SR
2016 Toyota Tacoma SR5
2016 Toyota Tacoma TRD Off-Road
2016 Toyota Tacoma TRD Sport
2017 Toyota Tacoma Limited
2017 Toyota Tacoma SR
2017 Toyota Tacoma SR5
2017 Toyota Tacoma TRD Off-Road
2017 Toyota Tacoma TRD Pro
2017 Toyota Tacoma TRD Sport
2018 Toyota Tacoma Limited
2018 Toyota Tacoma SR
2018 Toyota Tacoma SR5
2018 Toyota Tacoma TRD Off-Road
2018 Toyota Tacoma TRD Pro
2018 Toyota Tacoma TRD Sport
2019 Toyota Tacoma Limited
2019 Toyota Tacoma SR
2019 Toyota Tacoma SR5
2019 Toyota Tacoma TRD Off-Road
2019 Toyota Tacoma TRD Pro
2019 Toyota Tacoma TRD Sport
2020 Toyota Tacoma Limited
2020 Toyota Tacoma SR
2020 Toyota Tacoma SR5
2020 Toyota Tacoma TRD Off-Road
2020 Toyota Tacoma TRD Pro
2020 Toyota Tacoma TRD Sport
2021 Toyota Tacoma Limited
2021 Toyota Tacoma SR
2021 Toyota Tacoma SR5
2021 Toyota Tacoma Trail
2021 Toyota Tacoma TRD Off-Road
2021 Toyota Tacoma TRD Pro
2021 Toyota Tacoma TRD Sport
2022 Toyota Tacoma Limited
2022 Toyota Tacoma SR
2022 Toyota Tacoma SR5
2022 Toyota Tacoma TRD Off-Road
2022 Toyota Tacoma TRD Pro
2022 Toyota Tacoma TRD Sport
2023 Toyota Tacoma Limited
2023 Toyota Tacoma SR
2023 Toyota Tacoma SR5
2023 Toyota Tacoma Trail Special Edition
2023 Toyota Tacoma TRD Off-Road
2023 Toyota Tacoma TRD Pro
2023 Toyota Tacoma TRD Sport

Weight	61.5 lbs
Dimensions	26.7 × 13.1 × 9.9 in
air_freight_prohibited	false
not_carb_approved	false
carb_acknowledgement_required	false
ltl_freight_required	false
prop_65	Y
part_type	automotive
epa	N/A
units_per_sku	1
regular_stock	t
upc	00840103436562
brand	ICON
part_number	58730X-700
