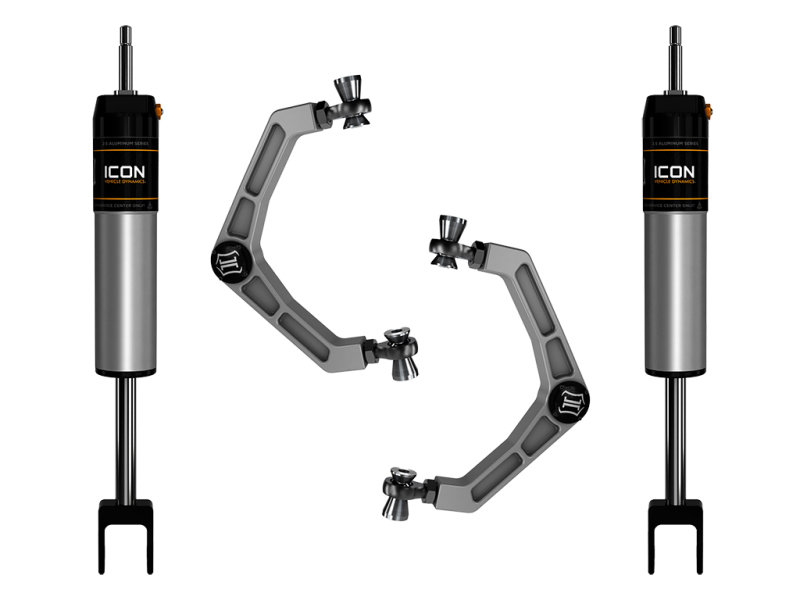

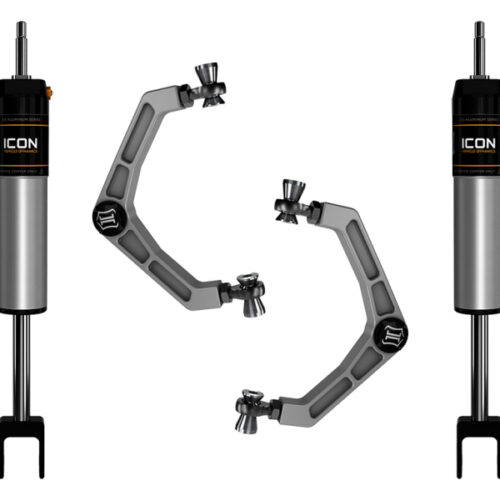

ICON 20+ GM HD 0-2in IR Shock System w/Billet UCA

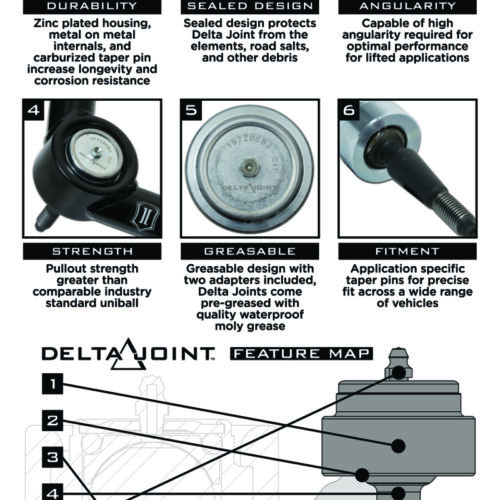

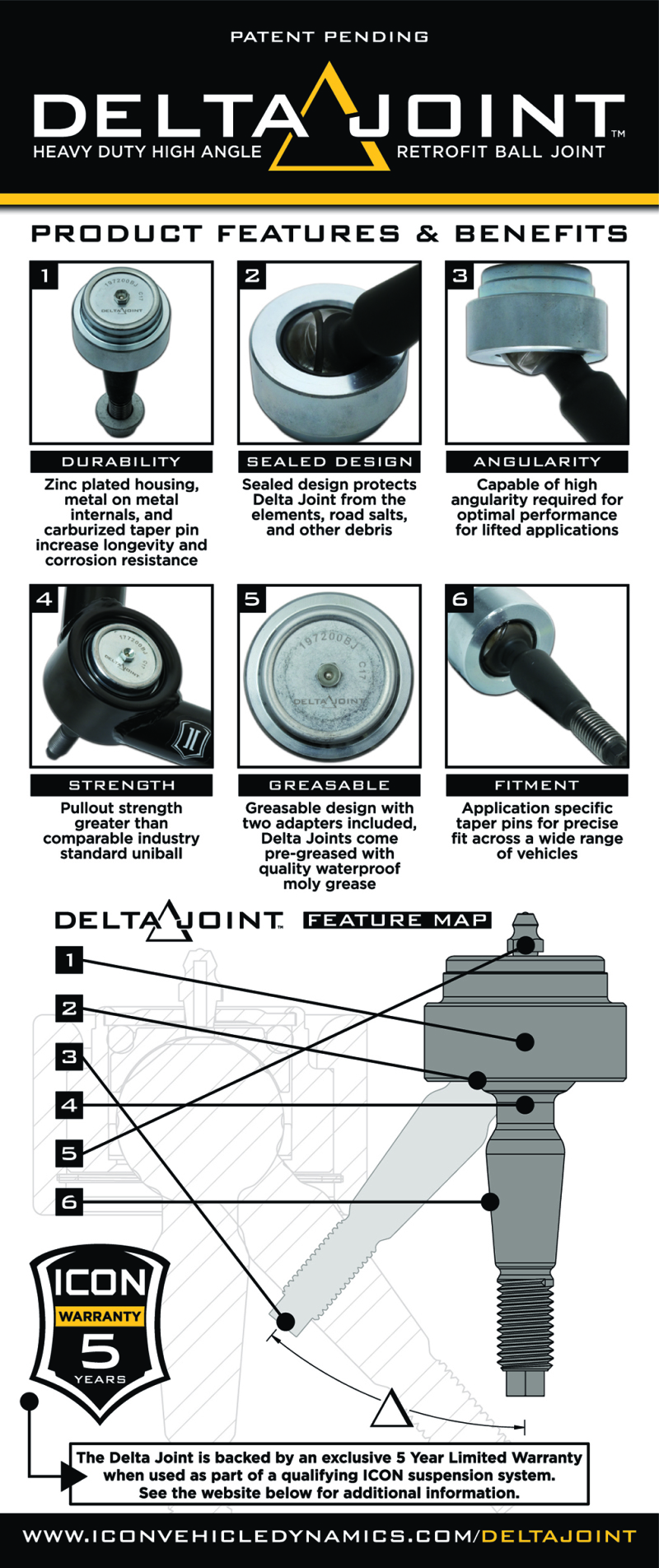

These upper control arms feature ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
ICON suspension systems lift your GM 2500/3500 HD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
TECH NOTE: The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Additional camber and caster adjustability allows for precise wheel alignment
• Features ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
• 7/8″ diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with internal reservoir
• Vehicle specific taper pin provides OE-like fitment
• PTFE Lined 7/8” FK Rod Ends for improved response
• Built in o-ring sealed dust cover cap
• 100% Rebuildable
• 100% Revalveable

Fits
2020 Chevrolet Silverado 2500 HD Custom
2020 Chevrolet Silverado 2500 HD High Country
2020 Chevrolet Silverado 2500 HD LT
2020 Chevrolet Silverado 2500 HD LTZ
2020 Chevrolet Silverado 2500 HD WT
2020 Chevrolet Silverado 3500 HD High Country
2020 Chevrolet Silverado 3500 HD LT
2020 Chevrolet Silverado 3500 HD LTZ
2020 Chevrolet Silverado 3500 HD WT
2020 GMC Sierra 2500 HD AT4
2020 GMC Sierra 2500 HD Base
2020 GMC Sierra 2500 HD Denali
2020 GMC Sierra 2500 HD SLE
2020 GMC Sierra 2500 HD SLT
2020 GMC Sierra 3500 HD AT4
2020 GMC Sierra 3500 HD Base
2020 GMC Sierra 3500 HD Denali
2020 GMC Sierra 3500 HD SLE
2020 GMC Sierra 3500 HD SLT
2021 Chevrolet Silverado 2500 HD Custom
2021 Chevrolet Silverado 2500 HD High Country
2021 Chevrolet Silverado 2500 HD LT
2021 Chevrolet Silverado 2500 HD LTZ
2021 Chevrolet Silverado 2500 HD WT
2021 Chevrolet Silverado 3500 HD High Country
2021 Chevrolet Silverado 3500 HD LT
2021 Chevrolet Silverado 3500 HD LTZ
2021 Chevrolet Silverado 3500 HD WT
2021 GMC Sierra 2500 HD AT4
2021 GMC Sierra 2500 HD Base
2021 GMC Sierra 2500 HD Denali
2021 GMC Sierra 2500 HD SLE
2021 GMC Sierra 2500 HD SLT
2021 GMC Sierra 3500 HD AT4
2021 GMC Sierra 3500 HD Base
2021 GMC Sierra 3500 HD Denali
2021 GMC Sierra 3500 HD SLE
2021 GMC Sierra 3500 HD SLT
2022 Chevrolet Silverado 2500 HD Custom
2022 Chevrolet Silverado 2500 HD High Country
2022 Chevrolet Silverado 2500 HD LT
2022 Chevrolet Silverado 2500 HD LTZ
2022 Chevrolet Silverado 2500 HD WT
2022 Chevrolet Silverado 3500 HD High Country
2022 Chevrolet Silverado 3500 HD LT
2022 Chevrolet Silverado 3500 HD LTZ
2022 Chevrolet Silverado 3500 HD WT
2022 GMC Sierra 2500 HD AT4
2022 GMC Sierra 2500 HD Base
2022 GMC Sierra 2500 HD Denali
2022 GMC Sierra 2500 HD SLE
2022 GMC Sierra 2500 HD SLT
2022 GMC Sierra 3500 HD AT4
2022 GMC Sierra 3500 HD Base
2022 GMC Sierra 3500 HD Denali
2022 GMC Sierra 3500 HD SLE
2022 GMC Sierra 3500 HD SLT
2023 Chevrolet Silverado 2500 HD Custom
2023 Chevrolet Silverado 2500 HD High Country
2023 Chevrolet Silverado 2500 HD LT
2023 Chevrolet Silverado 2500 HD LTZ
2023 Chevrolet Silverado 2500 HD WT
2023 Chevrolet Silverado 3500 HD High Country
2023 Chevrolet Silverado 3500 HD LT
2023 Chevrolet Silverado 3500 HD LTZ
2023 Chevrolet Silverado 3500 HD WT
2023 GMC Sierra 2500 HD AT4
2023 GMC Sierra 2500 HD Denali
2023 GMC Sierra 2500 HD Pro
2023 GMC Sierra 2500 HD SLE
2023 GMC Sierra 2500 HD SLT
2023 GMC Sierra 3500 HD AT4
2023 GMC Sierra 3500 HD Denali
2023 GMC Sierra 3500 HD Pro
2023 GMC Sierra 3500 HD SLE
2023 GMC Sierra 3500 HD SLT
2024 Chevrolet Silverado 2500 HD Custom
2024 Chevrolet Silverado 2500 HD High Country
2024 Chevrolet Silverado 2500 HD LT
2024 Chevrolet Silverado 2500 HD LTZ
2024 Chevrolet Silverado 2500 HD WT
2024 Chevrolet Silverado 2500 HD ZR2
2024 Chevrolet Silverado 3500 HD High Country
2024 Chevrolet Silverado 3500 HD LT
2024 Chevrolet Silverado 3500 HD LTZ
2024 Chevrolet Silverado 3500 HD WT
2024 GMC Sierra 2500 HD AT4
2024 GMC Sierra 2500 HD AT4X
2024 GMC Sierra 2500 HD Denali
2024 GMC Sierra 2500 HD Denali Ultimate
2024 GMC Sierra 2500 HD Pro
2024 GMC Sierra 2500 HD SLE
2024 GMC Sierra 2500 HD SLT
2024 GMC Sierra 3500 HD AT4
2024 GMC Sierra 3500 HD Denali
2024 GMC Sierra 3500 HD Denali Ultimate
2024 GMC Sierra 3500 HD Pro
2024 GMC Sierra 3500 HD SLE
2024 GMC Sierra 3500 HD SLT
2025 Chevrolet Silverado 2500 HD Custom
2025 Chevrolet Silverado 2500 HD High Country
2025 Chevrolet Silverado 2500 HD LT
2025 Chevrolet Silverado 2500 HD LTZ
2025 Chevrolet Silverado 2500 HD WT
2025 Chevrolet Silverado 2500 HD ZR2
2025 Chevrolet Silverado 3500 HD High Country
2025 Chevrolet Silverado 3500 HD LT
2025 Chevrolet Silverado 3500 HD LTZ
2025 Chevrolet Silverado 3500 HD WT
2025 GMC Sierra 2500 HD AT4
2025 GMC Sierra 2500 HD AT4X
2025 GMC Sierra 2500 HD Denali
2025 GMC Sierra 2500 HD Denali Ultimate
2025 GMC Sierra 2500 HD Pro
2025 GMC Sierra 2500 HD SLE
2025 GMC Sierra 2500 HD SLT
2025 GMC Sierra 3500 HD AT4
2025 GMC Sierra 3500 HD Denali
2025 GMC Sierra 3500 HD Denali Ultimate
2025 GMC Sierra 3500 HD Pro
2025 GMC Sierra 3500 HD SLE
2025 GMC Sierra 3500 HD SLT
2026 Chevrolet Silverado 2500 HD Custom
2026 Chevrolet Silverado 2500 HD High Country
2026 Chevrolet Silverado 2500 HD LT
2026 Chevrolet Silverado 2500 HD LTZ
2026 Chevrolet Silverado 2500 HD WT
2026 Chevrolet Silverado 2500 HD ZR2
2026 Chevrolet Silverado 3500 HD High Country
2026 Chevrolet Silverado 3500 HD LT
2026 Chevrolet Silverado 3500 HD LTZ
2026 Chevrolet Silverado 3500 HD WT
2026 GMC Sierra 2500 HD AT4
2026 GMC Sierra 2500 HD AT4X
2026 GMC Sierra 2500 HD Denali
2026 GMC Sierra 2500 HD Denali Ultimate
2026 GMC Sierra 2500 HD Pro
2026 GMC Sierra 2500 HD SLE
2026 GMC Sierra 2500 HD SLT
2026 GMC Sierra 3500 HD AT4
2026 GMC Sierra 3500 HD Denali
2026 GMC Sierra 3500 HD Denali Ultimate
2026 GMC Sierra 3500 HD Pro
2026 GMC Sierra 3500 HD SLE
2026 GMC Sierra 3500 HD SLT
