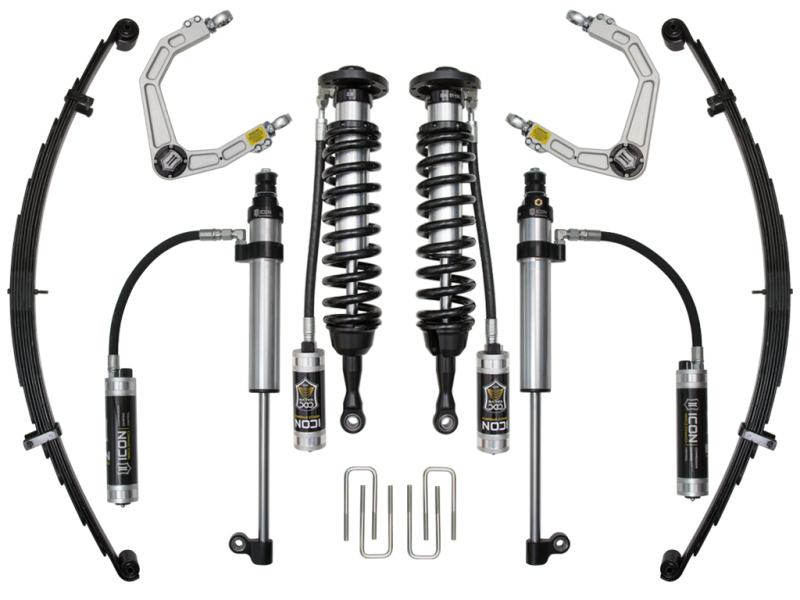

ICON 2007+ Toyota Tundra 1-3in Stage 9 Suspension System w/Billet Uca

The Stage 9 system includes vehicle-specific tuned 2.5 Series coilover shocks equipped with ICON’s CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel, and are height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these coilovers increase droop travel to the front suspension. To further increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield additional spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel, the Stage 9 system includes a unique 2.5 Aluminum Series CDC remote reservoir shock that features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location. This shock also features ICON’s CDC technology for simple compression adjustability, and a large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving.
2007-2021 TUNDRA 1-3″ LIFT STAGE 9 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS
APPLICATION NOTE #87: INSTALLATION OF COMPLETE ICON SYSTEM REQUIRED TO ATTAIN ADVERTISED WHEEL TRAVEL. USE OF ANY OTHER MANUFACTURERS COMPONENTS WILL NOT PROVIDE ADVERTISED WHEEL TRAVEL AND COULD CAUSE UNKNOWN DAMAGE.

• 10” aluminum reservoirs in RXT shocks provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• 2.5 Aluminum Series remote reservoir RXT rear shocks with impact extruded aluminum cylinders and 7/8″ shafts
• CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Military wrap front leaf spring eyelets for increased durability
• Leaf spring tip inserts reduce noise and increase ride comfort
• Adjustable coilovers provide 1-3″ of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable

Fits
2007 Toyota Tundra Base
2007 Toyota Tundra Limited
2007 Toyota Tundra SR5
2008 Toyota Tundra Base
2008 Toyota Tundra Limited
2008 Toyota Tundra SR5
2009 Toyota Tundra Base
2009 Toyota Tundra Limited
2009 Toyota Tundra SR5
2010 Toyota Tundra Base
2010 Toyota Tundra Limited
2010 Toyota Tundra Platinum
2010 Toyota Tundra SR5
2011 Toyota Tundra Base
2011 Toyota Tundra Limited
2011 Toyota Tundra Platinum
2011 Toyota Tundra SR5
2012 Toyota Tundra Base
2012 Toyota Tundra Limited
2012 Toyota Tundra Platinum
2013 Toyota Tundra Base
2013 Toyota Tundra Limited
2013 Toyota Tundra Platinum
2014 Toyota Tundra 1794 Edition
2014 Toyota Tundra Limited
2014 Toyota Tundra Platinum
2014 Toyota Tundra SR
2014 Toyota Tundra SR5
2015 Toyota Tundra 1794 Edition
2015 Toyota Tundra Limited
2015 Toyota Tundra Platinum
2015 Toyota Tundra SR
2015 Toyota Tundra SR5
2015 Toyota Tundra TRD Pro
2016 Toyota Tundra 1794 Edition
2016 Toyota Tundra Limited
2016 Toyota Tundra Platinum
2016 Toyota Tundra SR
2016 Toyota Tundra SR5
2016 Toyota Tundra TRD Pro
2017 Toyota Tundra 1794 Edition
2017 Toyota Tundra Limited
2017 Toyota Tundra Platinum
2017 Toyota Tundra SR
2017 Toyota Tundra SR5
2017 Toyota Tundra TRD Pro
2018 Toyota Tundra 1794 Edition
2018 Toyota Tundra Limited
2018 Toyota Tundra Platinum
2018 Toyota Tundra SR
2018 Toyota Tundra SR5
2019 Toyota Tundra 1794 Edition
2019 Toyota Tundra Limited
2019 Toyota Tundra Platinum
2019 Toyota Tundra SR
2019 Toyota Tundra SR5
2019 Toyota Tundra TRD Pro
2020 Toyota Tundra 1794 Edition
2020 Toyota Tundra Limited
2020 Toyota Tundra Platinum
2020 Toyota Tundra SR
2020 Toyota Tundra SR5
2020 Toyota Tundra TRD Pro
2021 Toyota Tundra 1794 Edition
2021 Toyota Tundra Limited
2021 Toyota Tundra Nightshade
2021 Toyota Tundra Platinum
2021 Toyota Tundra SR
2021 Toyota Tundra SR5
2021 Toyota Tundra Trail
2021 Toyota Tundra TRD Pro
