ICON 2019+ Ram 1500 Billet Upper Control Arm Delta Joint Kit

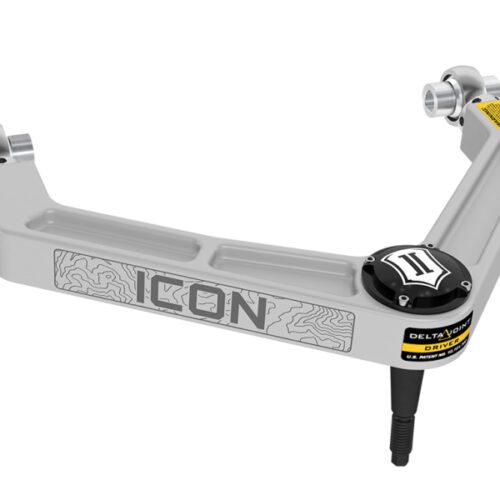

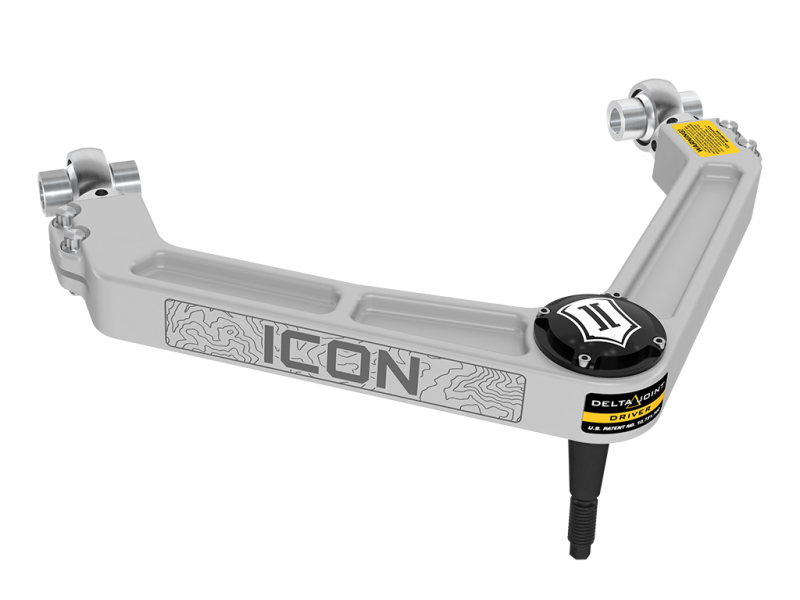

These upper control arms feature ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

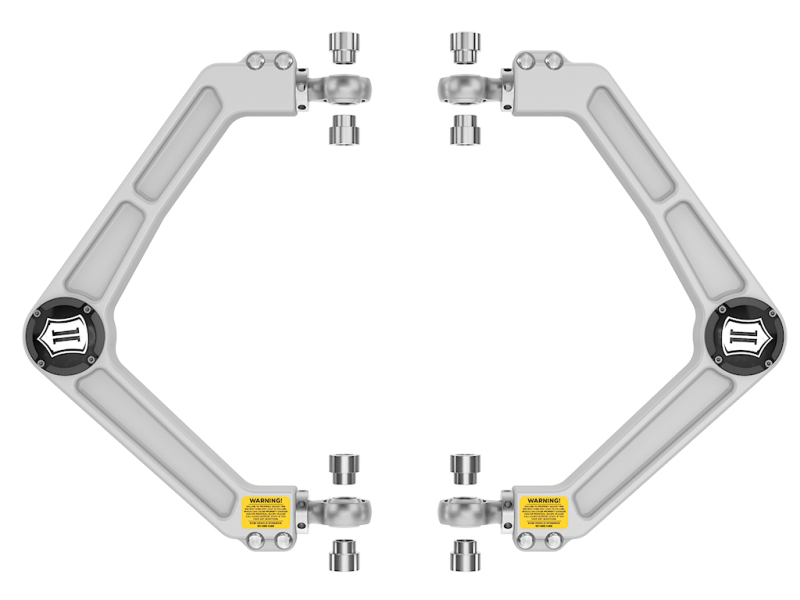

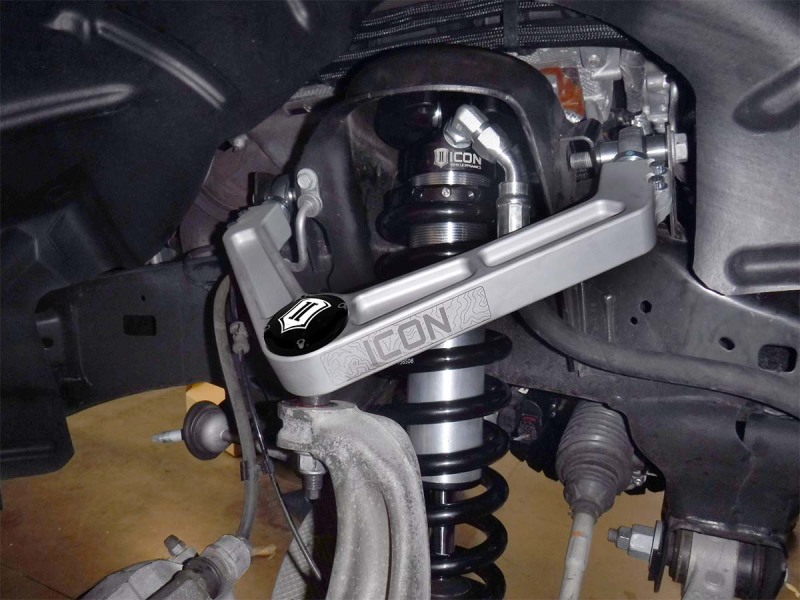

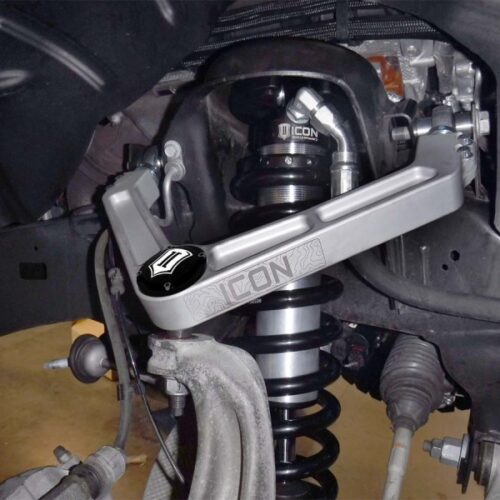

ICON billet aluminum upper control arm kit is designed to improve the overall performance of 2019-2023 Ram 1500 trucks with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance.
APPLICATION NOTE #183: May require sanding of coil bucket for clearance. Cycling suspension during install to verify clearance is recommended.

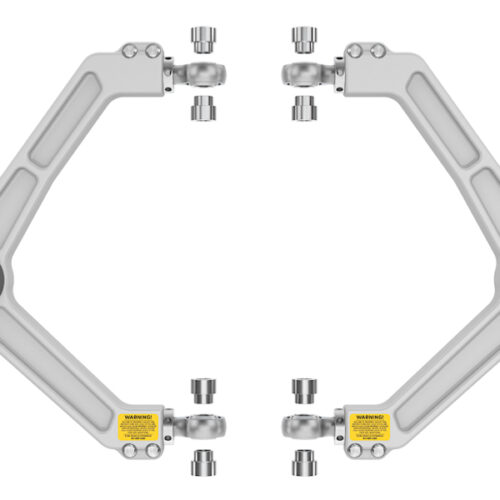

• Quality PTFE-lined ¾” FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Corrects suspension geometry and imptrecves handling on lifted or stock height trucks
• CNC machined 6061 billet aluminum construction with satin anodized finish
• Patented ICON Delta Joint allows maximum articulation without binding
• Quick, precise, on-vehicle adjustment for both caster and camber
• Built in O-ring sealed Delta Joint dust cover cap

Fits
2019 Ram 1500 Big Horn
2019 Ram 1500 HFE
2019 Ram 1500 Laramie
2019 Ram 1500 Laramie Longhorn
2019 Ram 1500 Limited
2019 Ram 1500 Lone Star
2019 Ram 1500 Rebel
2019 Ram 1500 Tradesman
2020 Ram 1500 Big Horn
2020 Ram 1500 HFE
2020 Ram 1500 Laramie
2020 Ram 1500 Laramie Longhorn
2020 Ram 1500 Limited
2020 Ram 1500 Lone Star
2020 Ram 1500 Rebel
2020 Ram 1500 Special Service
2020 Ram 1500 Tradesman
2021 Ram 1500 Big Horn
2021 Ram 1500 HFE
2021 Ram 1500 Laramie
2021 Ram 1500 Laramie Longhorn
2021 Ram 1500 Limited
2021 Ram 1500 Limited Longhorn
2021 Ram 1500 Lone Star
2021 Ram 1500 Longhorn
2021 Ram 1500 Rebel
2021 Ram 1500 Special Service
2021 Ram 1500 Tradesman
2022 Ram 1500 Big Horn
2022 Ram 1500 HFE
2022 Ram 1500 Laramie
2022 Ram 1500 Limited
2022 Ram 1500 Limited Longhorn
2022 Ram 1500 Lone Star
2022 Ram 1500 Rebel
2022 Ram 1500 Special Service
2022 Ram 1500 Tradesman
2023 Ram 1500 Big Horn
2023 Ram 1500 HFE
2023 Ram 1500 Laramie
2023 Ram 1500 Limited
2023 Ram 1500 Limited Longhorn
2023 Ram 1500 Lone Star
2023 Ram 1500 Rebel
2023 Ram 1500 Tradesman
2024 Ram 1500 Big Horn
2024 Ram 1500 HFE
2024 Ram 1500 Laramie
2024 Ram 1500 Limited
2024 Ram 1500 Limited Longhorn
2024 Ram 1500 Lone Star
2024 Ram 1500 Rebel
2024 Ram 1500 Tradesman
2025 Ram 1500 Big Horn
2025 Ram 1500 Laramie
2025 Ram 1500 Lone Star
2025 Ram 1500 Rebel
2025 Ram 1500 Special Service
2025 Ram 1500 Tradesman
2025 Ram 1500 Tradesman HFE
2025 Ram 1500 Warlock
2026 Ram 1500 Big Horn
2026 Ram 1500 Express
2026 Ram 1500 Laramie
2026 Ram 1500 Lone Star
2026 Ram 1500 Rebel
2026 Ram 1500 Special Service
2026 Ram 1500 Tradesman
2026 Ram 1500 Warlock
