$1,713.87
9 in stock (can be backordered)

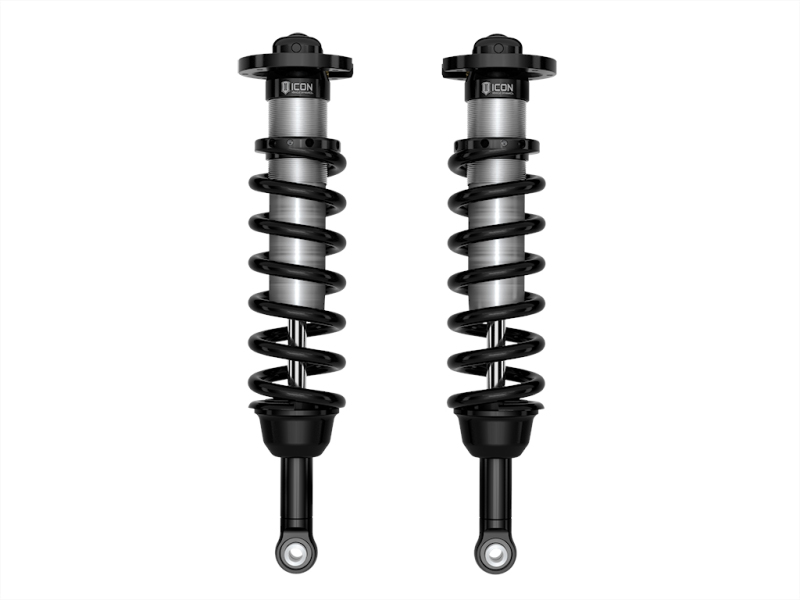

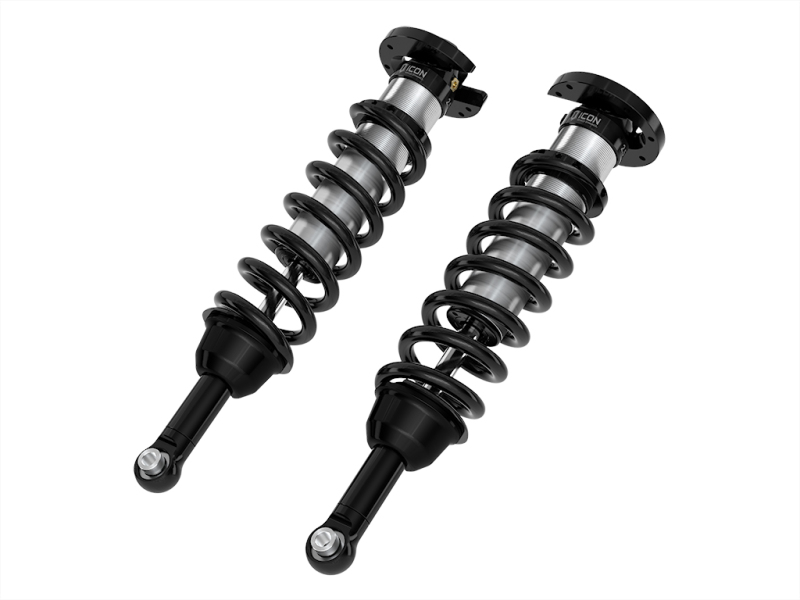

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra and 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on a Tundra or 3-4.5″ of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.
- Adjustable ride height offers 1.25-3.5″ of front lift over stock on Tundra or 3-4.5″ of front lift over stock on Sequoia
- Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle specific tuned for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- 6061 Aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable
- ICON engineered coil springs
Description
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra and 2023-2026 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on a Tundra or 3-4.5″ of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.
- Adjustable ride height offers 1.25-3.5″ of front lift over stock on Tundra or 3-4.5″ of front lift over stock on Sequoia
- Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle specific tuned for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- 6061 Aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable
- ICON engineered coil springs
Fits
2022 Toyota Tundra 1794 Edition
2022 Toyota Tundra Limited
2022 Toyota Tundra Platinum
2022 Toyota Tundra SR
2022 Toyota Tundra SR5
2022 Toyota Tundra TRD Pro
2023 Toyota Sequoia Capstone
2023 Toyota Sequoia Limited
2023 Toyota Sequoia Platinum
2023 Toyota Sequoia SR5
2023 Toyota Sequoia TRD Pro
2023 Toyota Tundra 1794 Edition
2023 Toyota Tundra Limited
2023 Toyota Tundra Platinum
2023 Toyota Tundra SR
2023 Toyota Tundra SR5
2023 Toyota Tundra TRD Pro
2024 Toyota Sequoia Capstone
2024 Toyota Sequoia Limited
2024 Toyota Sequoia Platinum
2024 Toyota Sequoia SR5
2024 Toyota Sequoia TRD Pro
2024 Toyota Tundra 1794 Edition
2024 Toyota Tundra Limited
2024 Toyota Tundra Platinum
2024 Toyota Tundra SR
2024 Toyota Tundra SR5
2024 Toyota Tundra TRD Pro
2025 Toyota Sequoia 1794 Edition
2025 Toyota Sequoia Capstone
2025 Toyota Sequoia Limited
2025 Toyota Sequoia Platinum
2025 Toyota Sequoia SR5
2025 Toyota Sequoia TRD Pro
2025 Toyota Tundra 1794 Edition
2025 Toyota Tundra Limited
2025 Toyota Tundra Platinum
2025 Toyota Tundra SR
2025 Toyota Tundra SR5
2025 Toyota Tundra TRD Pro
2026 Toyota Sequoia 1794 Edition
2026 Toyota Sequoia Capstone
2026 Toyota Sequoia Limited
2026 Toyota Sequoia Platinum
2026 Toyota Sequoia SR5
2026 Toyota Sequoia TRD Pro
2026 Toyota Tundra 1794 Edition
2026 Toyota Tundra Limited
2026 Toyota Tundra Platinum
2026 Toyota Tundra SR
2026 Toyota Tundra SR5
2026 Toyota Tundra TRD Pro
Fitment Details
Fitment Details
Additional information
| Weight | 51.6 lbs |
|---|---|
| Dimensions | 27.1 × 12.8 × 8.1 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| regular_stock | t |
| units_per_sku | 1 |
| upc | 00840103414645 |
| brand | ICON |
| part_number | 58670 |
Brand
Brand
ICON
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Toyota | Sequoia 1794 Edition | 2025 - 2026 |
| Toyota | Sequoia Capstone | 2023 - 2026 |
| Toyota | Sequoia Limited | 2023 - 2026 |
| Toyota | Sequoia Platinum | 2023 - 2026 |
| Toyota | Sequoia SR5 | 2023 - 2026 |
| Toyota | Sequoia TRD Pro | 2023 - 2026 |
| Toyota | Tundra 1794 Edition | 2022 - 2026 |
| Toyota | Tundra Limited | 2022 - 2026 |
| Toyota | Tundra Platinum | 2022 - 2026 |
| Toyota | Tundra SR | 2022 - 2026 |
| Toyota | Tundra SR5 | 2022 - 2026 |
| Toyota | Tundra TRD Pro | 2022 - 2026 |
