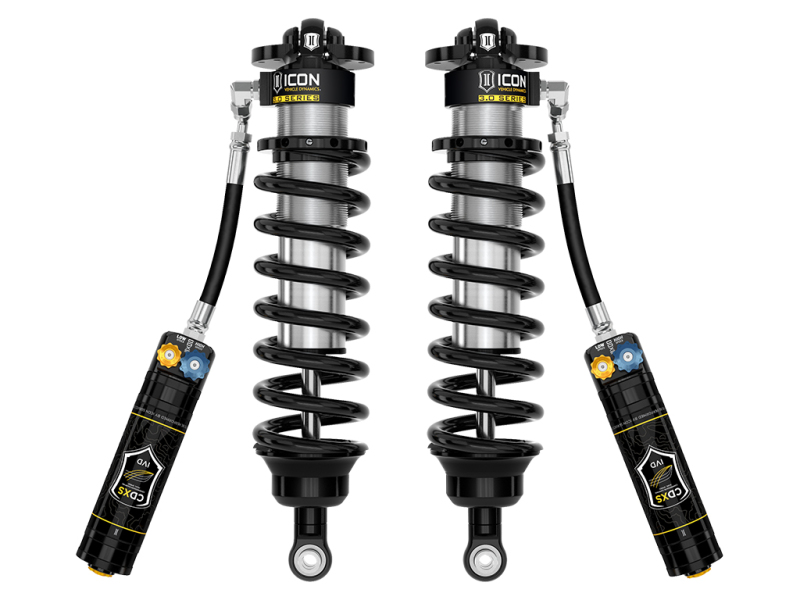

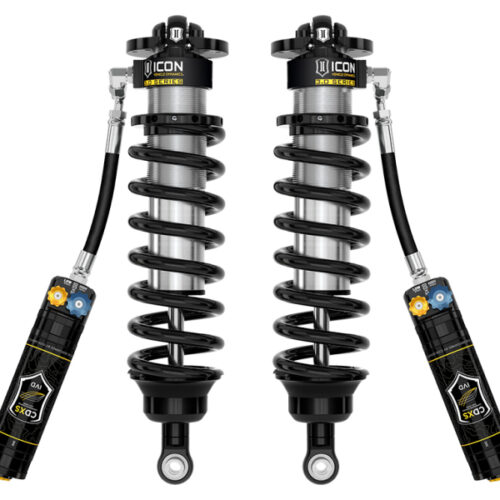

ICON 22-25 Toyota Tundra 3.0 Series VS RR CDXS Coilover Kit

3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock’s travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
ICON’s Vehicle-specific shock length and valving along with the larger 3.0” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
APPLICATION NOTE #374: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

• ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel

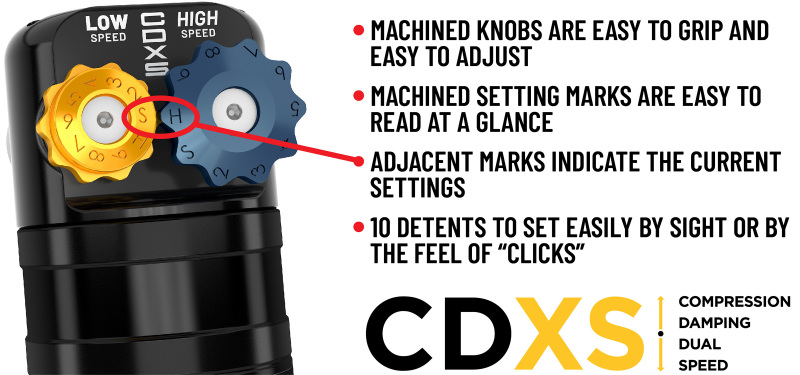

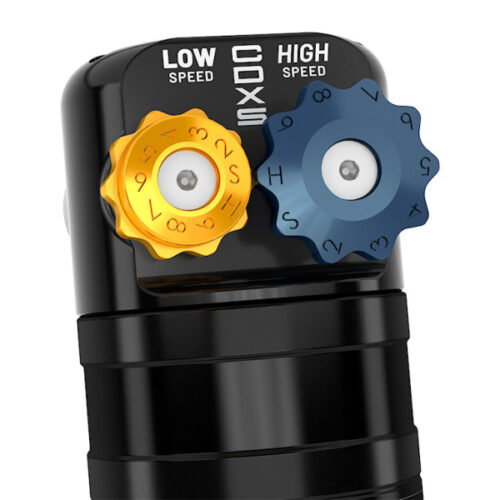

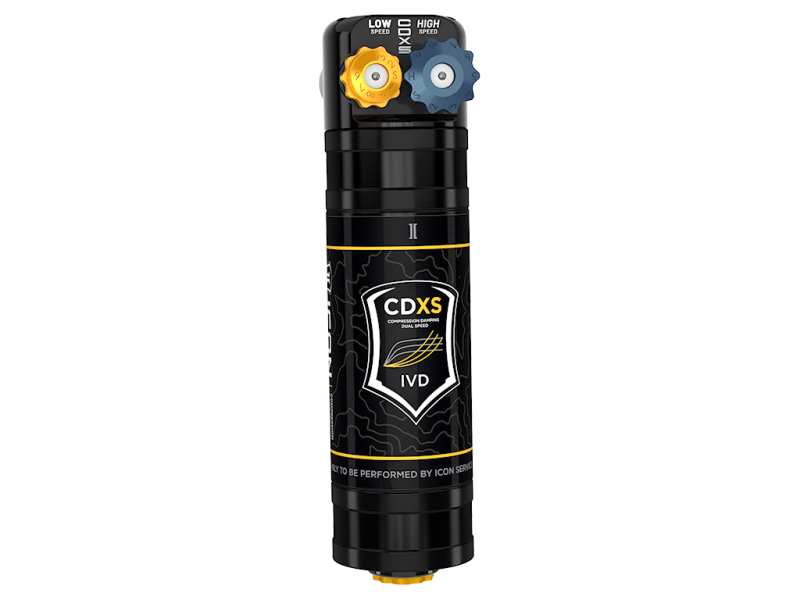

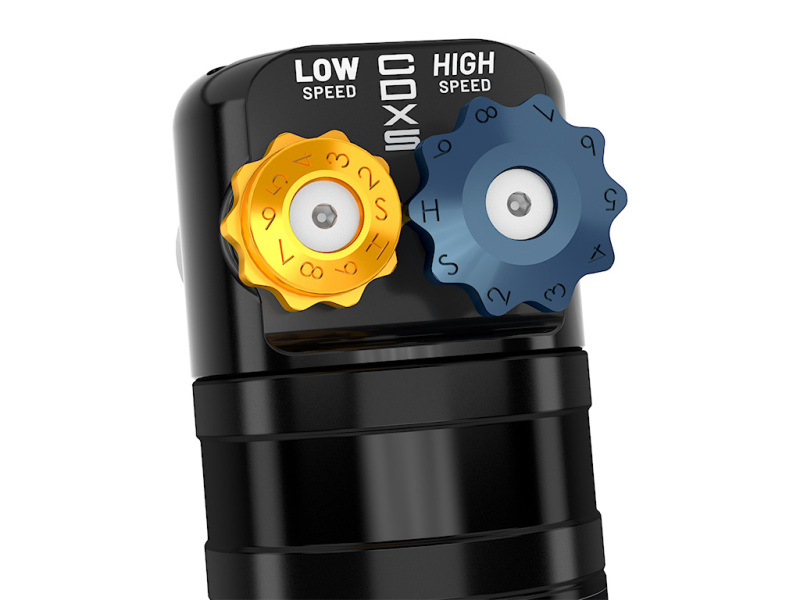

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Adjustable up to 1.25-3.25″ of front lift height over stock on Tundra or 3-4.25″ of front lift on Sequoia
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• CNC machined 6061 aluminum components with a black anodized finish
• 7/8” diameter induction hardened, chrome plated shock shafts
• 40% increase in front wheel travel over stock
• Fully Rebuildable and Re-tunable

Fits
2022 Toyota Tundra 1794 Edition
2022 Toyota Tundra Limited
2022 Toyota Tundra Platinum
2022 Toyota Tundra SR
2022 Toyota Tundra SR5
2022 Toyota Tundra TRD Pro
2023 Toyota Sequoia Capstone
2023 Toyota Sequoia Limited
2023 Toyota Sequoia Platinum
2023 Toyota Sequoia SR5
2023 Toyota Sequoia TRD Pro
2023 Toyota Tundra 1794 Edition
2023 Toyota Tundra Limited
2023 Toyota Tundra Platinum
2023 Toyota Tundra SR
2023 Toyota Tundra SR5
2023 Toyota Tundra TRD Pro
2024 Toyota Sequoia Capstone
2024 Toyota Sequoia Limited
2024 Toyota Sequoia Platinum
2024 Toyota Sequoia SR5
2024 Toyota Sequoia TRD Pro
2024 Toyota Tundra 1794 Edition
2024 Toyota Tundra Limited
2024 Toyota Tundra Platinum
2024 Toyota Tundra SR
2024 Toyota Tundra SR5
2024 Toyota Tundra TRD Pro
2025 Toyota Sequoia 1794 Edition
2025 Toyota Sequoia Capstone
2025 Toyota Sequoia Limited
2025 Toyota Sequoia Platinum
2025 Toyota Sequoia SR5
2025 Toyota Sequoia TRD Pro
2025 Toyota Tundra 1794 Edition
2025 Toyota Tundra Limited
2025 Toyota Tundra Platinum
2025 Toyota Tundra SR
2025 Toyota Tundra SR5
2025 Toyota Tundra TRD Pro
2026 Toyota Sequoia 1794 Edition
2026 Toyota Sequoia Capstone
2026 Toyota Sequoia Limited
2026 Toyota Sequoia Platinum
2026 Toyota Sequoia SR5
2026 Toyota Sequoia TRD Pro
2026 Toyota Tundra 1794 Edition
2026 Toyota Tundra Limited
2026 Toyota Tundra Platinum
2026 Toyota Tundra SR
2026 Toyota Tundra SR5
2026 Toyota Tundra TRD Pro

Weight	79 lbs
Dimensions	38.4 × 13.6 × 9.4 in
air_freight_prohibited	false
not_carb_approved	false
carb_acknowledgement_required	false
ltl_freight_required	false
prop_65	Y
part_type	automotive
epa	N/A
units_per_sku	1
regular_stock	t
upc	840103433349
brand	ICON
part_number	58775X
