Modular Motorsports Racing 400335B Oil Filter Relocation Spin-On Adapter For 2011-2023 5.0L Coyote Engines & 4.6L / 5.4L

Fits Vehicle: 2011-2023 5.0 Coyote Engines

Ford Coyote & Modular Oil Filter Relocation Kit

These kits include all parts needed to relocate your oil filter away from the block, great for Turbo and Supercharged applications, aftermarket K-members and for those people that just cant stand the oil dripping all over their steering rack during a oil change. This High quality race kit includes High Quality Black Stainless Braided lines and AN fittings, includes all parts shown for easy install.

Fits:

2011-2023 5.0 Coyote Engines (Mustang and F150)

ALL 4.6 / 5.4 / 5.8 Ford Modular Blocks (Mustang, Crown Vic, F150, F250, Lincoln Navigator etc)

Includes:

*MMR Billet Low profile Spin on adapter to replace the original oil filter (if clearance is tight near your oil filter please use MMR PN#400335A

* Includes MMR Oil Filter Mounting Bracket with -10 AN fittings (also has 1/8npt Oil Pressure port)

*-10AN OIL FITTINGS

* Includes 6 FT ULTRA HIGH QUALITY BLACK stainless steel braided hose

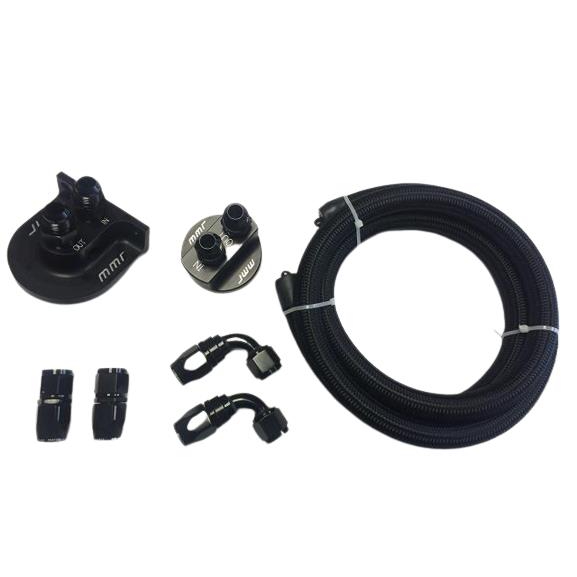

* ALL Parts Shown in picture are INCLUDED

*Uses Fram HP 4 or HP 8 oil filter or equivalent.

CONNECTIONS: ALWAYS CONNECT OUT to IN and IN to OUT- NEVER CONNECT OUT TO OUT or IN to IN – this will result in ZERO oil pressure!!!!!

Installation Instructions

Spin-on VS Bolt on kits explained:

Spin-on kits have been around a long time, they simply replace the factory oil filter with a spin-on adapter that has a inlet and outlet which then feeds the relocated oil filter. a bolt-on style kit replaces the entire factory oil filter housing with a bolt on Billet adapter with an inlet and outlet. From an installation standpoint the Spin on is the easiest, from a racing/motorsports standpoint the bolt on is better because it does not have any chance of the spin on adapter from loosening due to engine vibration in race applications. MMR offers both kits so choose based on what works best for your application.

Brand

MMR Modular Motorsports Racing
