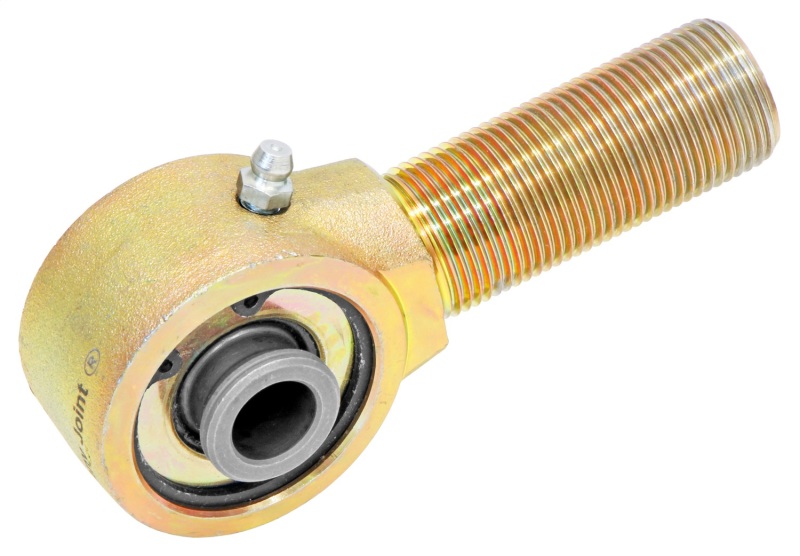

RockJock Johnny Joint Rod End 2in Narrow Forged 2.190in X 0.482in Ball 1in-14 RH Threaded Shank

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 2.190 in. mounting width ball with a .482 in. thru bolt hole. Finished in gold zinc plating.
Johnny Joint® Rod End; 2 in.; w/1 in. RH Thread/.482 in. X 2.190 in. Ball;

• Narrow Forged Johnny Joint®

Weight	1.7 lbs
Dimensions	7.3 × 3.4 × 3.1 in
air_freight_prohibited	false
not_carb_approved	false
ltl_freight_required	false
prop_65	Y
part_type	automotive
epa	N/A
carb_acknowledgement_required	false
regular_stock	t
units_per_sku	1
upc	810038150963
brand	RockJock
part_number	CE-9112N-11
