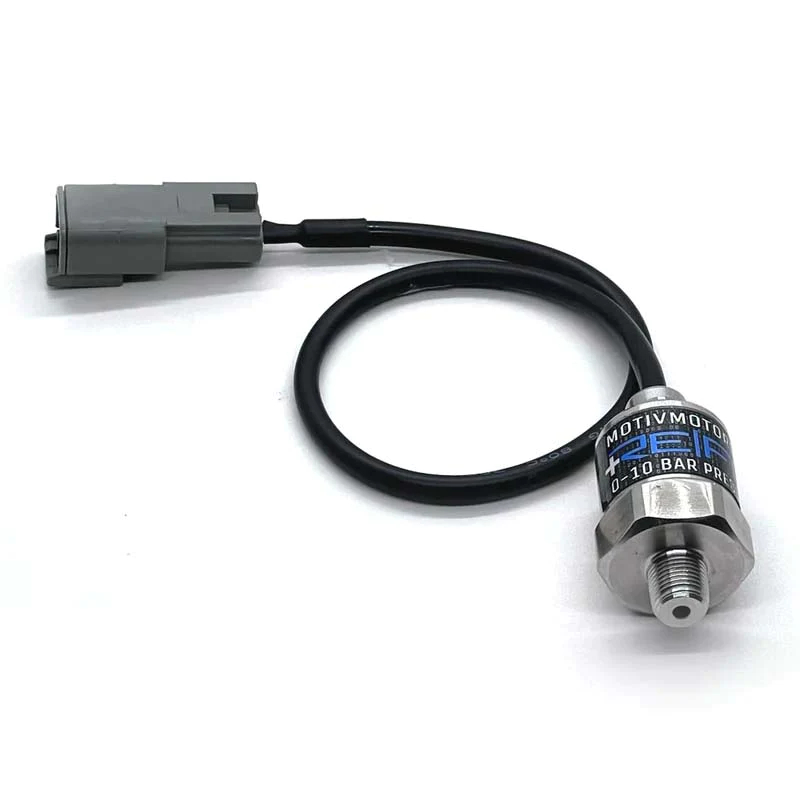

TOOHIGHPSI Performance Engineering THP-REPLEXPLUS-PS ReFlex+ Pressure Sensor (0-150psi)
This 0-150 psi (0-10 Bar) sensor is safe for fuel pressure, exhaust gas back pressure, oil pressure, coolant pressure, and more. Paired with an ATM 2 Pin connector it is Plug-n-Play to your MOTIV ReFlex.
- 0-10 Bar Sensor
- ATM 2 Pin PnP Connector
The MOTIV REFLEX 0-10 Bar Pressure Sensor can monitor low pressure fuel, oil pressure, coolant pressure, exhaust gas back pressure and many others. The REFLEX uses a sensor that provides a current which is proportional the pressure. Their sensor includes a 3/8” SAE EFI adapter with 1/8” NPT ports for the sensor to be axed to. If you are using it for any other pressure source, then you will need to have an 1/8” NPT port for it to screw into (always use thread paste or Teflon tape on NPT threads). Simply connect the 2 pin connector on the main REFLEX harness to the 2 pin connector on the pressure sensor. Pin 23 on the REFLEX is setup for the pressure input signal from their pressure sensor and the other is a 12v+ switched supply
