Whipple WHP-S55018-SCSSTG2 Supercharger System Stage 2 for 2018-2022 Ford Mustang GT

Fits Vehicle: 2018-2022 Ford Mustang GT

BETTER IS NOT OPTIONAL, IT’S MANDATORY….

SAME RECORD BREAKING, CHAMPIONSHIP WINNING PERFORAMNCE AS THE 2018 FORD COBRA JET

While Whipple broke many rules and records with its record setting S550 supercharger system, holding the title of the most powerful, most advanced supercharger system available, they weren’t satisfied and decided to build an all new supercharger from the ground up. The incredible results speak for themselves, the patented 50-state legal stage 2 supercharger system pumps out an astounding 825* flywheel HP and 640* foot pounds of torque on pump gas! The Stage 2 features an extra 300rpm until redline, high flow fuel pump, 132mm billet throttle body and 1psi higher boost vs the Stage 1.

The new, direct and port injected supercharger system features the brand new Generation 5 3.0L front feed twin-screw supercharger. Not to be confused with the Gen 3 or 4, this all new supercharger features industry leading efficiency from idle to redline. All new bearings, gears, rotors and housing allow the new supercharger to spin faster, longer and safer while producing more power than any other positive displacement supercharger ever built. The new Gen 5 features an all new 3/4 rotor combination vs previous 3/5, 285 deg helix vs previous 270 deg, new bell mouth inlet, optimized discharge port and increased diameter vs length for higher efficiency.

The 2018+ also features an all new patented dual core, dual pass intercooler design that has even more volume and surface area than the already massive Whipple Cooler that cooled the Ford Cobra Jets and all the record setting S550 Mustangs. Couple this with the industry’s leading heat exchanger, water reservoir and intercooler pump, you get more power with lower boost levels and quicker recovery times after aggressive operation.

With years of OEM and racing experience, Whipple engineers have developed a unique PCM calibration that reconfigures all the necessary engine functions including fuel, spark, knock detection, torque management, transmission control and electronic throttle control. The vehicles PCM constantly monitors the engines torque output while monitoring many different parameters to keep the engine in it’s ideal parameters. If a parameter falls below specification, the PCM will lower boost and torque output until the problem can be cured. No other calibration in the field has such technology, giving the Whipple SC system unheralded performance and reliability. Each Whipple kit comes with unique software and a OBDII flash tool giving the customer the ability to flash/update whenever needed. Each customer also gets the new Flight Control Software, ability to adjust wheel/axle size, octane adjustment, crank/cam relearn and many other unique features.

Each complete Whipple system comes with the IAT2 harness and sensor to properly monitor the delta between the incoming air and the compressed air after the intercoolers, this helps maximize power in all given environments. The 6-rib billet idler system features a billet spring loaded tensioner, billet idler pulleys and lightweight pocketed supercharger pulley. The 6-rib can easily be upgraded to a 10-rib with the optional 10-rib system. Each system comes with an adjustable idler pulley to allow variance in SC pulleys with minimal belt length changes. The massive 150mm Roval inlet allows for nearly any throttle body to be run, 80mm stock, 132mm or 150mm throttle bodies.

2018-2021 Model Years 50 State Legal: EO D231-69

2022-2023 MODEL YEARS NOT LEGAL FOR SALE IN CALIFORNIA

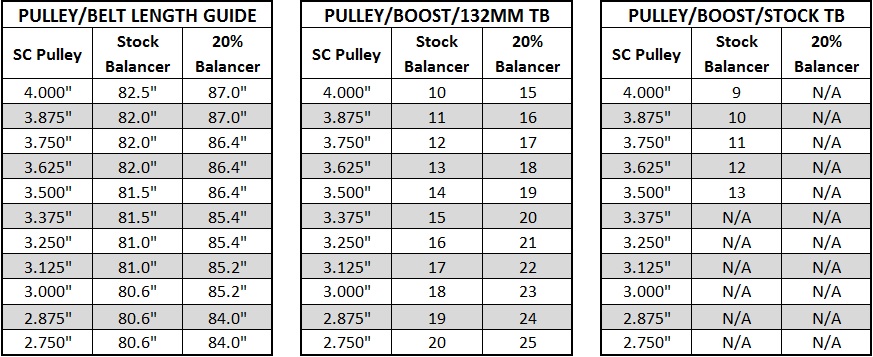

Boost table is a guide only, exhaust, environment and application may vary boost readings

*Power numbers are quoted with 93 octane, under ideal conditions, actual results may vary depending on conditions and testing procedures. 91 octane testing will always result in lower power numbers.

WHIPPLE SUPERCHARGERS S550 EXCLUSIVE FEATURES

• Largest intercooler system on the market, featuring patented dual intercooler, dual pass technology
• Billet 132mm high flow throttle pre-set with factory electronics
• No other upgrades required, just massive power right out of the box
• Front entry Gen 5 W185ax (3.0 liters/3000cc) Whipple twin-screw supercharger that significantly outperforms competitions 2.3L and 2.65L roots-type systems
• Gen 5 supercharger features new 3×4 rotor combination for increased RPM capacity, large diameter for increased airflow and small leak path, increased helix for optimal sealing
• 3.0L is 13% larger than 2.65L roots-type allowing lower power draw and lower discharge temps to flow the same amount of air (more power to the rear wheels)
• Oversized Crusher™ 150mm inlet for maximum airflow capacity and minimal rotor cavitation
• Inverted design allows for oversized intercooler core compared to other smaller intercooler cores giving Whipple lower air charge temps which allows more boost and timing to be run on pump gas
• Patented dual core, dual pass intercooler technology
• Massive air-to-water aluminum bar-plate intercoolers (over 55% larger than some competition) offer more cooling than any other positive displacement system available, nothing comes close
• Massive oversized aluminum intercooler reservoir (over 2 gallons) holds more than double any competitors IC water system allowing longer more consistent power levels vs. competition
• High flow intercooler pump, nearly double the flow of the standard units others use
• Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy
• Included OBDII Tomahawk flash tool
• Tomahawk allows wheel/tire and axle changes (a Whipple exclusive)
• 58 lb/hr dual pattern fuel injectors vs stock 17lb/hr stock injectors
• Exclusive 3×4 rotor combo for significant increase in airflow under the curve than less efficient 4×4 roots
• Center discharge port for better cylinder to cylinder distribution then other twin-screws with cobbled together billet adapters and forward facing discharge
• Extra plenum volume below intercooler core for far less pressure drop and better use of the increased surface area of the massive intercooler core
• More boost at the “hit” than any other twin-screw
• Flat torque curve for incredible acceleration
• High flow fuel pump replaces stock pump
• Oversized heat exchanger for incredible intercooler water temps, 150% more volume than competition, standard with every kit
• Fits under factory hood with no modifications
• No cutting or grinding on the engine block
• No cutting or grinding the K-brace
• No internal modifications required
• Kits come complete with all necessary parts and hardware for installation
• Plug and play wiring with male and female connections
• Proven 6-rib belt system with heavy duty spring loaded tensioner and adjustable idler system
• Optional 10-rib belt system with matching 6061 T6 billet pulleys
• OEM quick connect fittings for easy installation
• Available in wrinkle black, polish, Ford textured blue or any custom color
• Instant boost at the touch of the throttle
• 3 minute pulley changes
• Easy belt changes
• Lightweight pocketed 6061 T6 billet aluminum SC pulley
• Iridium spark plugs included

The Whipple Advantage

The Whipple Advantage is designed into every Whipple SC system. This advantage is broken down into 5 categories during the design and testing phases which truly sets Whipple apart from others:

1.     Best power for money.

2.     Most complete package.

3.     Maximum power.

4.     Maximum power expandability.

5.     Aesthetic appeal.

What does this mean? You get it all, in one package. Massive power gains with the biggest superchargers, biggest intercoolers, biggest intercooler systems, biggest air-inlet systems while providing robust belt systems and heavy-duty spring tensioners. The intake manifold is designed with high velocity in mind, while increasing plenum volume to lower pressure loss at high power applications.

You then get OEM style fuel and vacuum hoses with nylon sheaving for added protection and appeal, OEM style quick connect fittings with billet aluminum fittings. No ugly brass fittings hanging off the inlet like some others. Wire extensions are injection molded to allow simple plug-and-play installations. Each system also has multiple options for increased performance such as oversized heat-exchangers with dual fans, billet high flow throttle bodies, oversized cold air intake systems just to name a few.

Each kit comes with step-by-step instruction manuals printed in color to help all installers, including the do-it-yourselfer. Kits come with all the fasteners, all color matched for proper aesthetic appeal.

So don’t be fooled by others, there is no comparing to the Whipple supercharger systems, simply the top of the line packages designed and built to exceed all expectations.

WHIPPLE DYNO RESULTS

STAGE 1 VS STAGE 2, 93 OCTANE, 10R80 TRANSMISSION, 7TH GEAR, 3.55 GEARS

Dyno results are under ideal conditions, 93 octane and 7th gear (1:1 ratio). Results may vary depending on dyno, conditions, octane vehicles and other modifications. 91 octane dyno results will always be lower due to the high compression engine and reduced spark advance.
