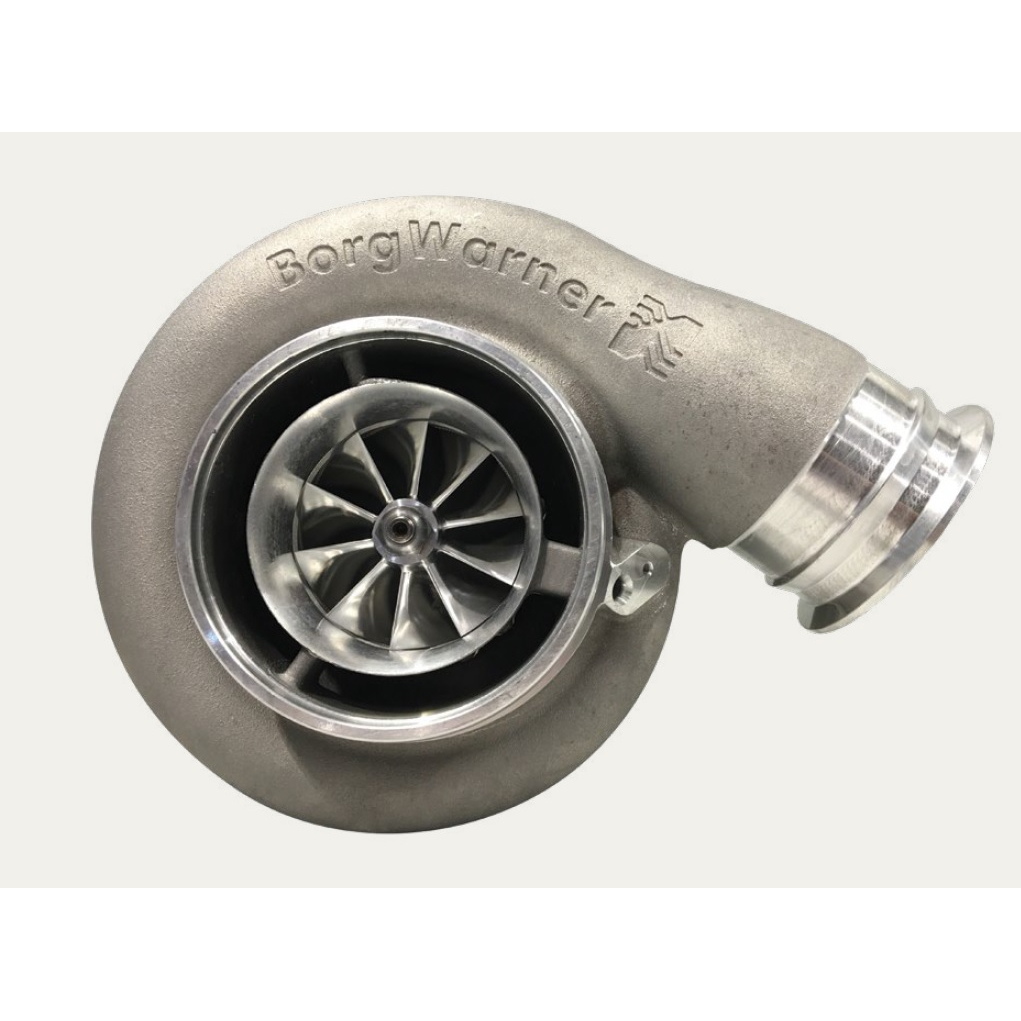

BorgWarner bwa14009097010 AirWerks SuperCores Assembly SX-E S400SX-E 80mm 110/96

Fits Vehicle:

Universal

SKU: bwa14009097010

650 – 1350 HP turbo

Comp. Wheel O.D. (in) – 3.94

Comp Wheel O.D. (mm) – 110.00

Comp Wheel Inducer Dia. (in) – 3.16

Comp Wheel Inducer Dia. (mm) – 80.30

Turbine Wheel O.D. (in) – 3.77

Turbine Wheel O.D. (mm) – 95.70

Turbine Wheel Exducer – 3.47

Turbine Wheel Exducer (mm) – 88.05

F E A T U R E S

• Twin hydrodynamic journal bearings
• Extended Tip Technology Compressor Wheel
• Twin Scroll Turbine Housing
• Adjustable compressor and turbine housing orientation
• Standard turbine inlet and outlet connections
• Compressor cover recirculation grooves
• Pre-machined Speed sensor mounting boss
• V-Band or hose bead

Brand

BorgWarner
