Name: CSF S58 No Limit Billet Air-To-Air Competition Manifold
SKU: csf8402
Price: 3995.00 USD
Availability: InStock

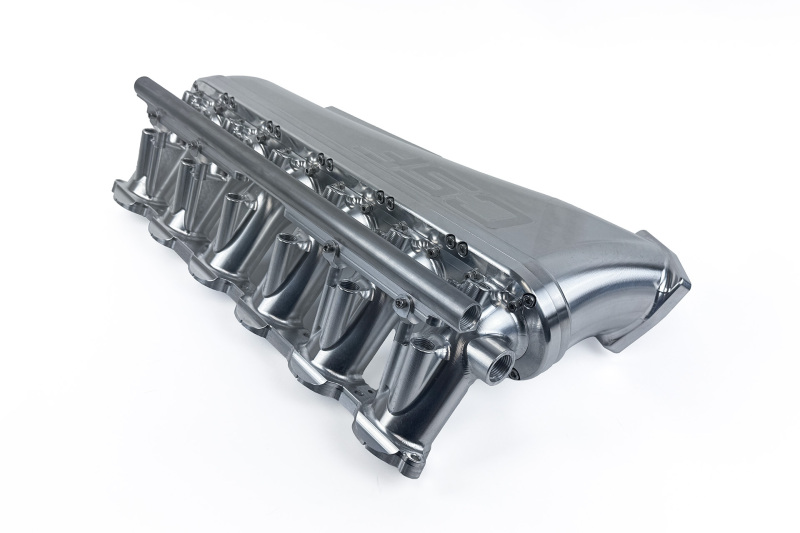

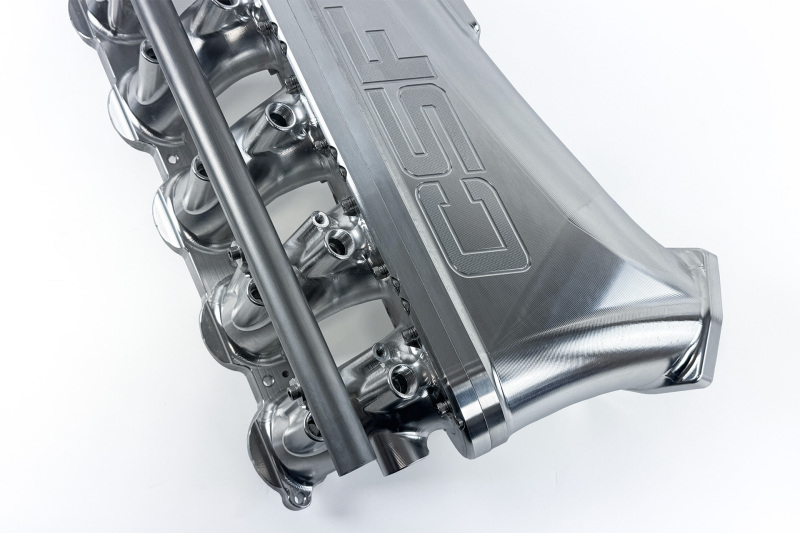

CSF S58 No Limit Billet Air-To-Air Competition Manifold

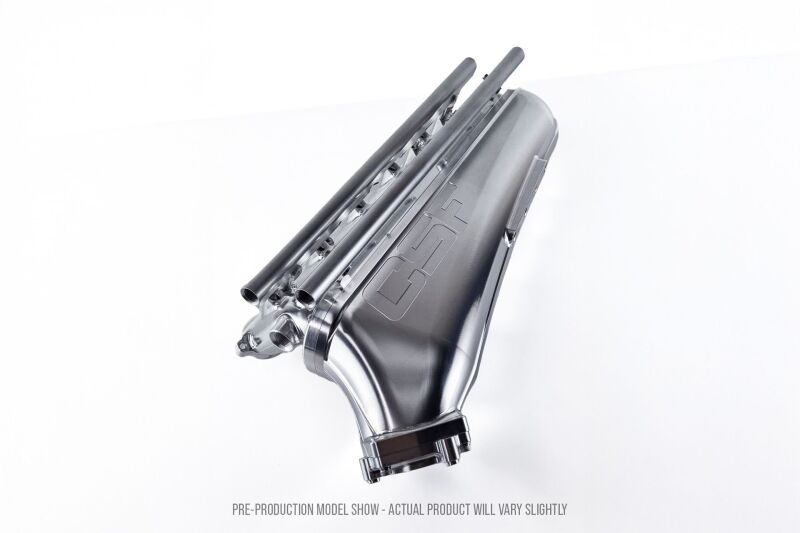

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 2

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 3

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 4

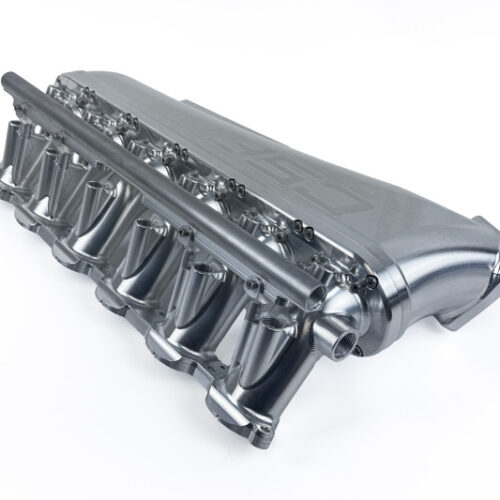

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 5

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 6

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 7

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 8

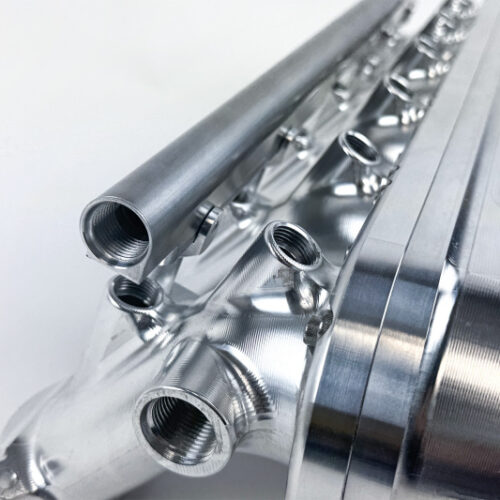

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 9

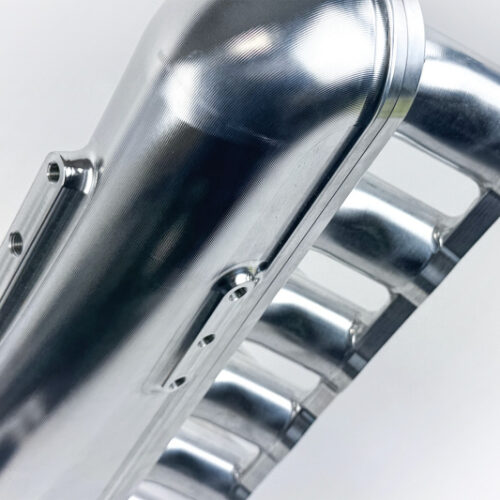

CSF S58 No Limit Billet Air-To-Air Competition Manifold - Image 10

$3,995.00

2 in stock

Track proven and tested in the extreme Texas heat with ambient temperature consistently over 90°F (32°C) at TX2K by three S58 vehicles. All three posted times of 7-seconds, including new world record holder of the “Fastest BMW in the World” Tom Wrigley Performance in his G80 M3 race car (7.67 seconds at 183mph). The street driven GTP Motorsport G87 xDrive M2 also set the M2 World Record with a time of 7.84 seconds at 178mph.
CSF’s new manifold design, which removes the charge cooler from the intake manifold, resolves the core size limitation of all drop-in fit options available on the market.
The CSF #8402 Cooling product is designed to be a “Custom Fit” application. The product installion may require modifications. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Includes CSF’s proprietary Thermal Rejection Manifold Spacer – Proven to lower intake manifold temperatures by up to 15%
S58 version comes with billet oil filter housing adapter to make filter accessible without removing the manifold

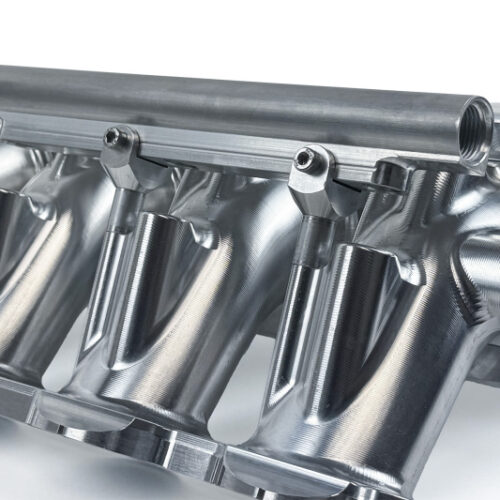

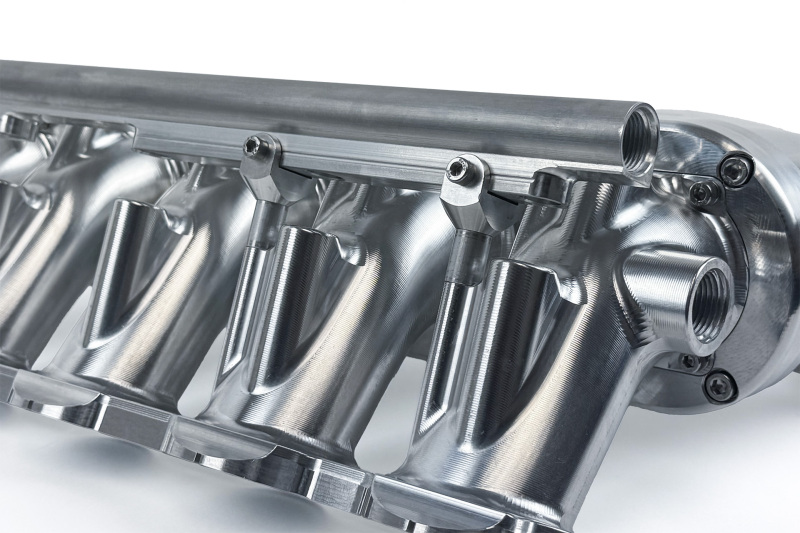

Modular Ports on the Top of Each Cylinder Runner that can also be used for Nitrous or Methanol Injection
Throttle Body Flange is engineered to accommodate a larger 77mm S55 throttle body (BMW 13-54-7-597-871)
Comes Finished in Raw Billet Aluminum – Custom Finishes available (Powder Coat, Cerakote, or Anodizing)

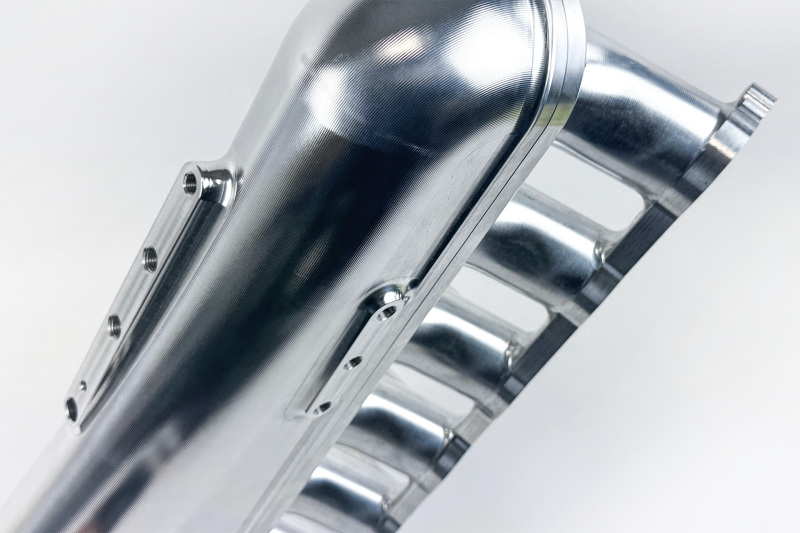

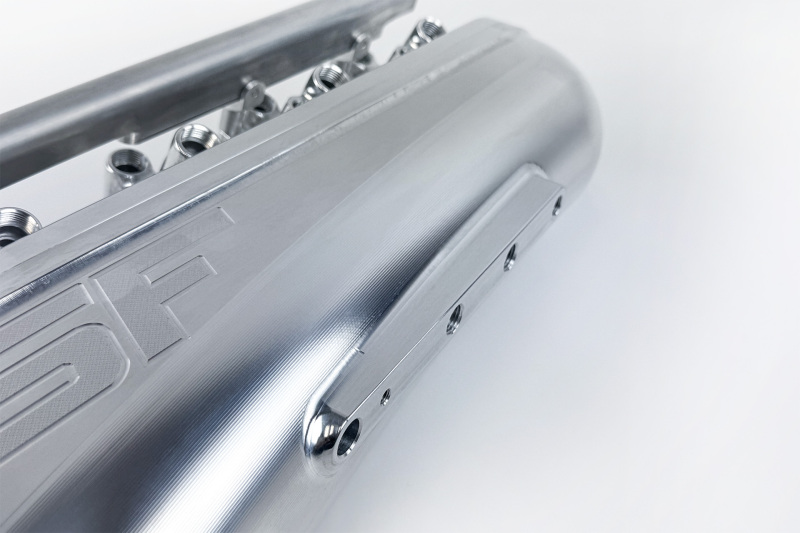

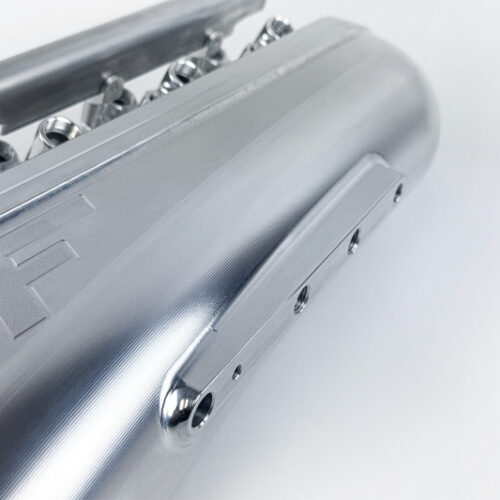

Two Integrated Sensor Pads to Measure Additional Parameters or as Extra Sources of Vacuum
High-pressure o-ring sealed construction designed to withstand 100+ psi (7+ Bar)
CSF recommends using VTT-FAB Extension Harnesses – B58/S58 to S55 TB Conversion
Plenum inlet angle optimally designed for easier intercooler pipe routing

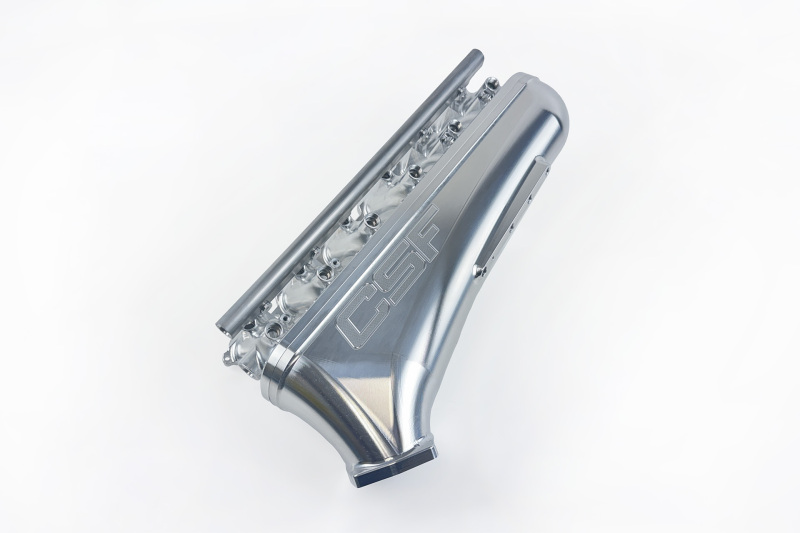

Fully CNC machined 6061 Billet Aluminum Made by CPC (Made in Australia)

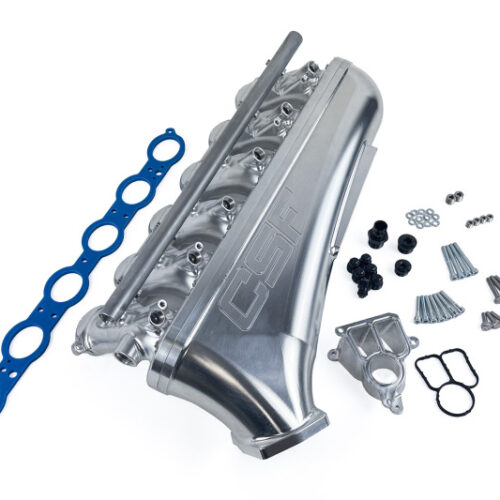

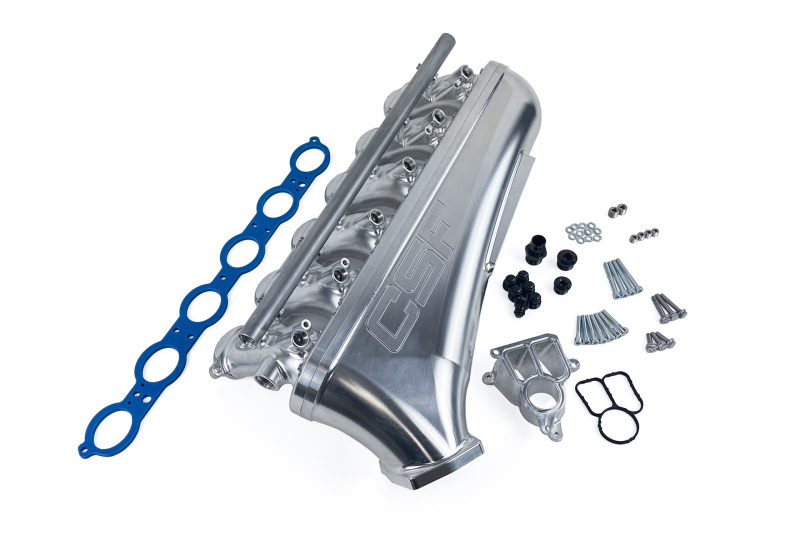

Includes Hardware and Installation Kit with picture diagrams and BOM

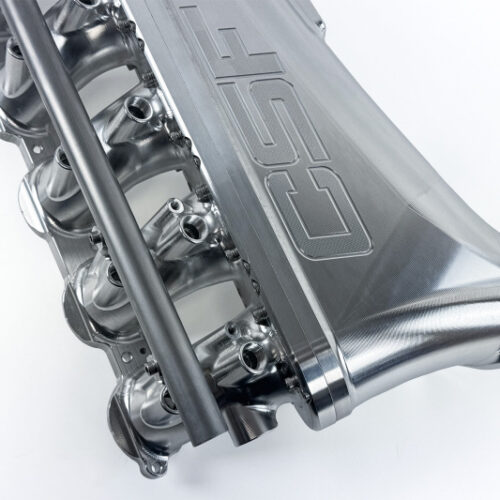

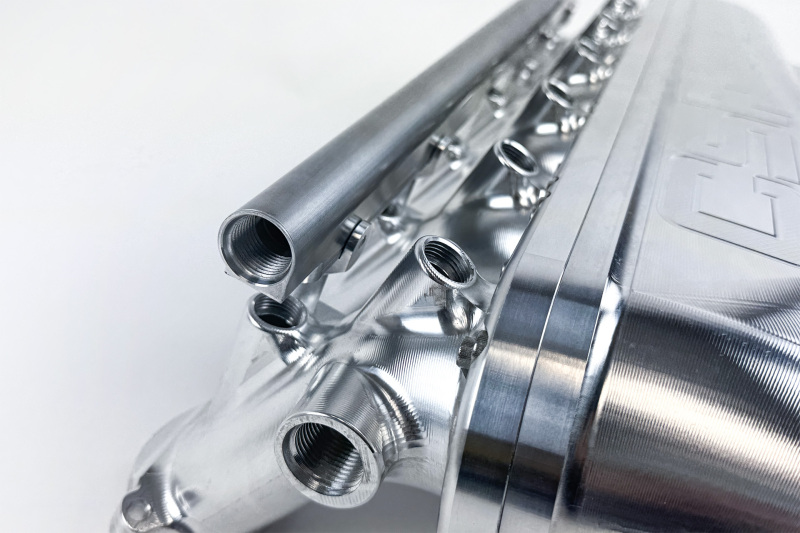

One Fuel Rail for Top Feed Port Injection (for 6 Injector setup)
Top Feed Port Injection – capable of running 6 or 12 injectors.
Includes One OEM TMAP, Two 1/4 NPT, and Four 1/8th NPT Ports
Individual Runner Nitrous / Methanol adapter kit – CSF #8403

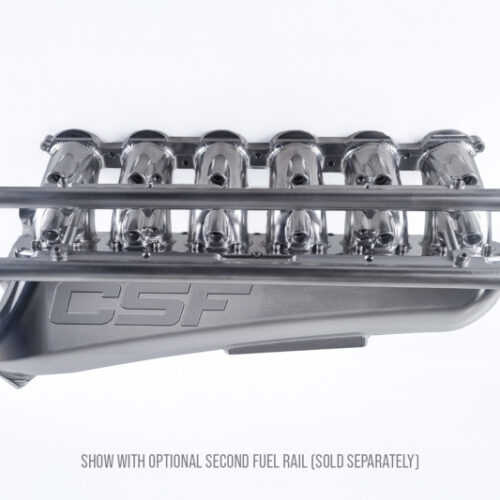

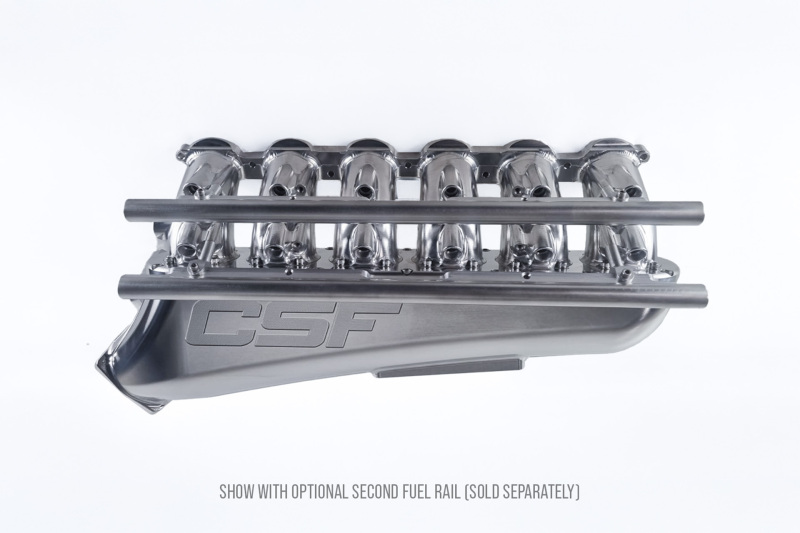

2nd Fuel Rail (for 12 Injector setup) – CSF #8404
Optional Add-Ons (not included):
6 Injector Block Off Plugs
Internal Velocity Stacks
Includes:

SKU: csf8402 Category: Intercoolers Tags: Brand: CSF

Description

Includes CSF’s proprietary Thermal Rejection Manifold Spacer – Proven to lower intake manifold temperatures by up to 15%
S58 version comes with billet oil filter housing adapter to make filter accessible without removing the manifold
Modular Ports on the Top of Each Cylinder Runner that can also be used for Nitrous or Methanol Injection
Throttle Body Flange is engineered to accommodate a larger 77mm S55 throttle body (BMW 13-54-7-597-871)
Comes Finished in Raw Billet Aluminum – Custom Finishes available (Powder Coat, Cerakote, or Anodizing)
Two Integrated Sensor Pads to Measure Additional Parameters or as Extra Sources of Vacuum
High-pressure o-ring sealed construction designed to withstand 100+ psi (7+ Bar)
CSF recommends using VTT-FAB Extension Harnesses – B58/S58 to S55 TB Conversion
Plenum inlet angle optimally designed for easier intercooler pipe routing
Fully CNC machined 6061 Billet Aluminum Made by CPC (Made in Australia)
Includes Hardware and Installation Kit with picture diagrams and BOM
One Fuel Rail for Top Feed Port Injection (for 6 Injector setup)
Top Feed Port Injection – capable of running 6 or 12 injectors.
Includes One OEM TMAP, Two 1/4 NPT, and Four 1/8th NPT Ports
Individual Runner Nitrous / Methanol adapter kit – CSF #8403
2nd Fuel Rail (for 12 Injector setup) – CSF #8404
Optional Add-Ons (not included):
6 Injector Block Off Plugs
Internal Velocity Stacks
Includes:

Fits
2020 BMW X3 M
2020 BMW X3 M Competition
2020 BMW X4 M
2020 BMW X4 M Competition
2021 BMW M3 Base
2021 BMW M3 Competition
2021 BMW M4 Base
2021 BMW M4 Competition
2021 BMW X3 M
2021 BMW X3 M Competition
2021 BMW X4 M
2021 BMW X4 M Competition
2022 BMW M3 Base
2022 BMW M3 Competition
2022 BMW M3 Competition xDrive
2022 BMW M4 Base
2022 BMW M4 Competition
2022 BMW M4 Competition xDrive
2022 BMW X3 M
2022 BMW X3 M Competition
2022 BMW X4 M
2022 BMW X4 M Competition
2023 BMW M2 Base
2023 BMW M3 Base
2023 BMW M3 Competition
2023 BMW M3 Competition xDrive
2023 BMW M4 Base
2023 BMW M4 Competition
2023 BMW M4 Competition xDrive
2023 BMW M4 CSL
2023 BMW X3 M
2023 BMW X4 M
2024 BMW M2 Base
2024 BMW M3 Base
2024 BMW M3 Competition
2024 BMW M3 Competition xDrive
2024 BMW M3 CS
2024 BMW M4 Base
2024 BMW M4 Competition
2024 BMW M4 Competition xDrive
2024 BMW X3 M
2024 BMW X4 M
2025 BMW M2 Base
2025 BMW M3 Base
2025 BMW M3 Competition
2025 BMW M3 Competition xDrive
2025 BMW M4 Base
2025 BMW M4 Competition
2025 BMW M4 Competition xDrive
2025 BMW M4 CS
2025 BMW X4 M
2026 BMW M2 Base
2026 BMW M3 Base
2026 BMW M3 Competition
2026 BMW M3 Competition xDrive
2026 BMW M4 Base
2026 BMW M4 Competition
2026 BMW M4 Competition xDrive

Fitment Details

Additional information

Weight	19.3 lbs
Dimensions	27.9 × 13 × 12.5 in
air_freight_prohibited	false
not_carb_approved	true
carb_acknowledgement_required	true
ltl_freight_required	false
prop_65	N
part_type	automotive
epa	N/A
regular_stock	t
units_per_sku	1
upc	710353084021
brand	CSF
part_number	8402
