Garrett Turbochargers grt836023-5004S GT2560R Turbocharger (Small Frame)

Fits Vehicle:

Universal

SKU: grt836023-5004S

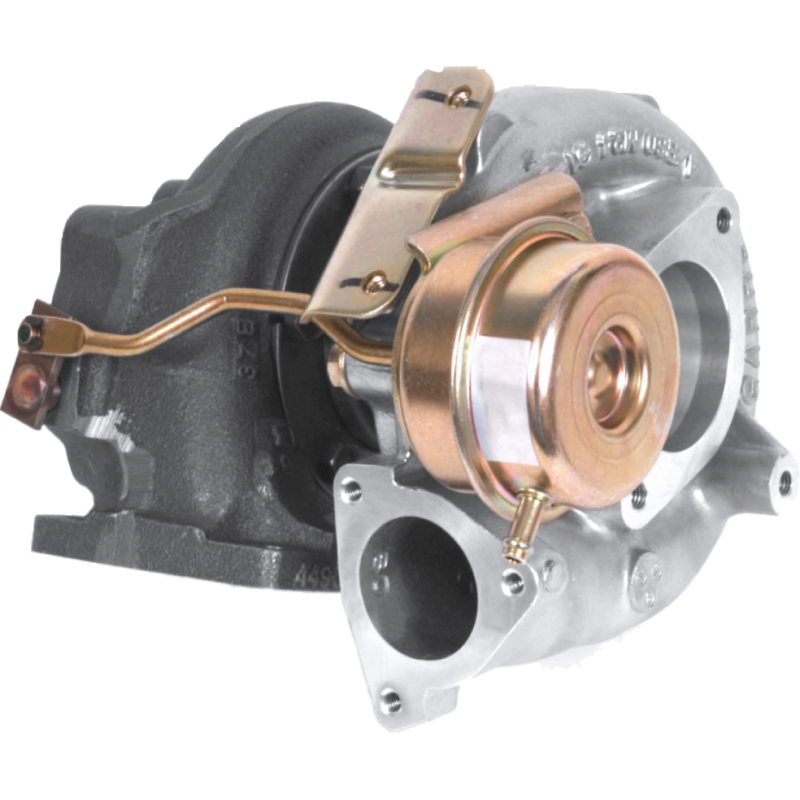

Garrett GT2560R Turbocharger (Small Frame)

Family – GT

Turbo Name – GT2560R

Part Number – 836023-5004S

Power Range – 170 – 270

Displacement – 1.4 – 2.2L

Compressor Inducer – 42.1mm

Compressor Exducer – 54.4mm

Trim – 60

A/R – 0.8

Comp. Map – Click

Turbine Inducer – 53.0mm

Turbine Exducer – 41.7mm

Trim2 – 62

A/R2 – 0.64

Turbo Map – Click

Cooling System – Oil and Water Cooled

Brand

Garrett
