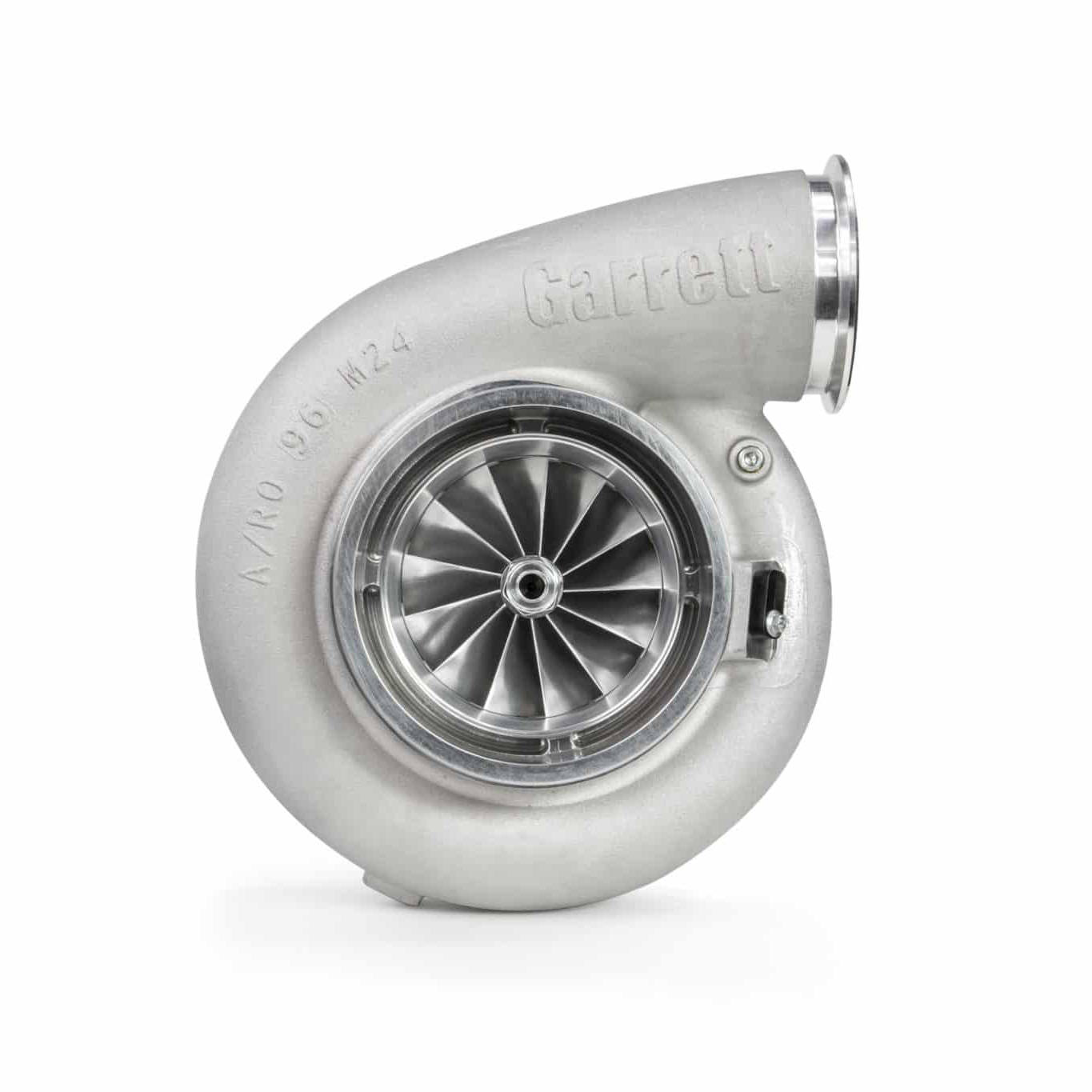

Garrett Turbochargers grt880547-5001S G55-1850 85mm Super Core
Fits Vehicle:
Universal
SKU: grt880547-5001S
G-Series G55-1850 85mm
Reference Data
Horsepower – 1000-1850
Displacement – 3.0L-12.0L

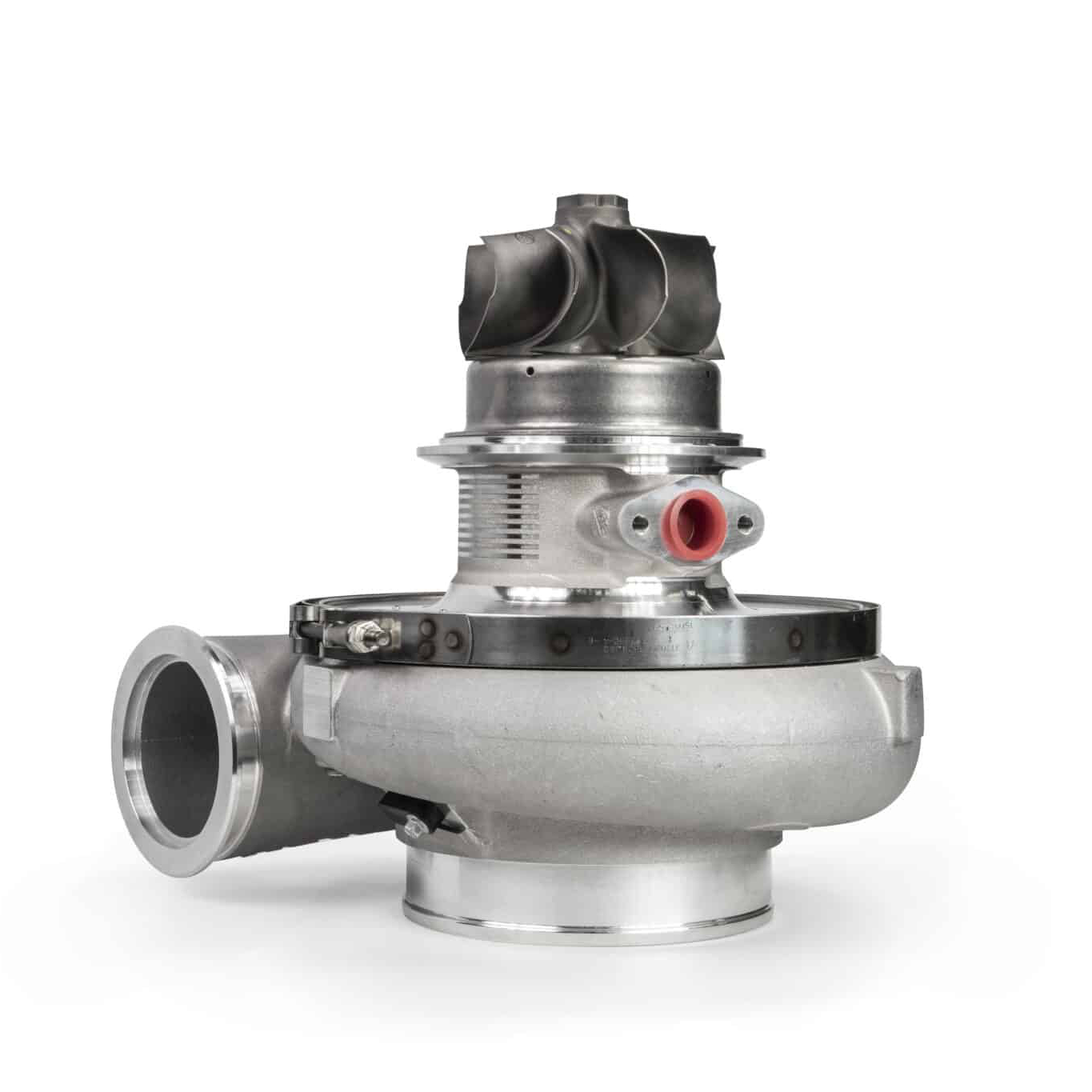

Supercore – G55-1850
PN – 880547-5001S
Compressor
Inducer – 85mm
Exducer – 133mm
A/R – 0.88
Turbine
Inducer – 112mm
Exducer – 106mm
Trim – 90
Features
• Supports up to 1850 horsepower
• 85mm compressor inducer | 133mm compressor exducer
• 112mm turbine inducer | 106mm turbine exducer
• 15% more turbine flow (compared to GTX) see graph below
• One-piece aluminum center housing
• 16mm ceramic dual ball bearing cartridge
• Outline interchangeable with GTX Gen II turbos
• Stainless Steel turbine kit sold individually.
• T6 Inlet: 1.00 A/R, 1.12 A/R, 1.24 A/R, 1.40 A/R
• V-Band Inlet: 1.24 A/R, 1.40 A/R
- G55-1850 (85mm Compressor Inducer) 880547-5001S
