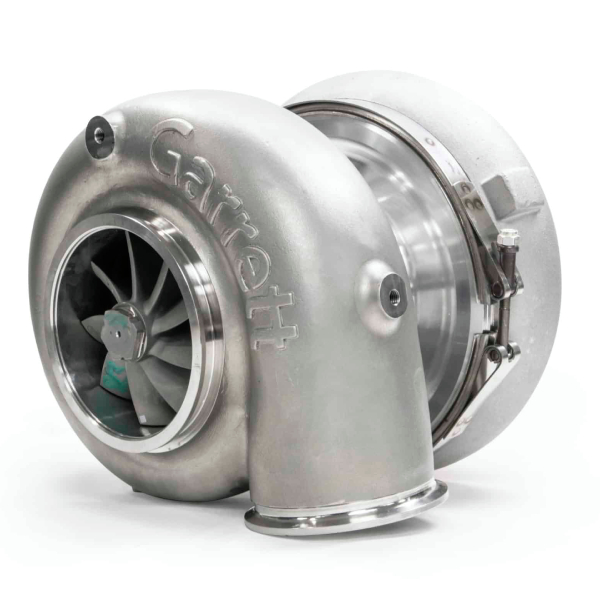

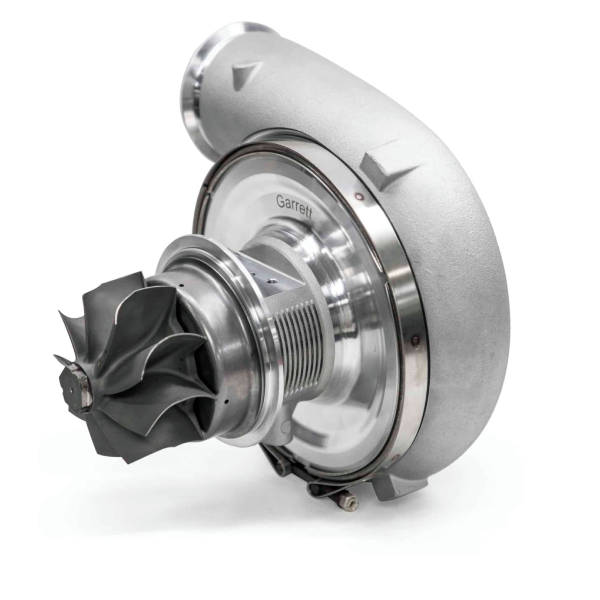

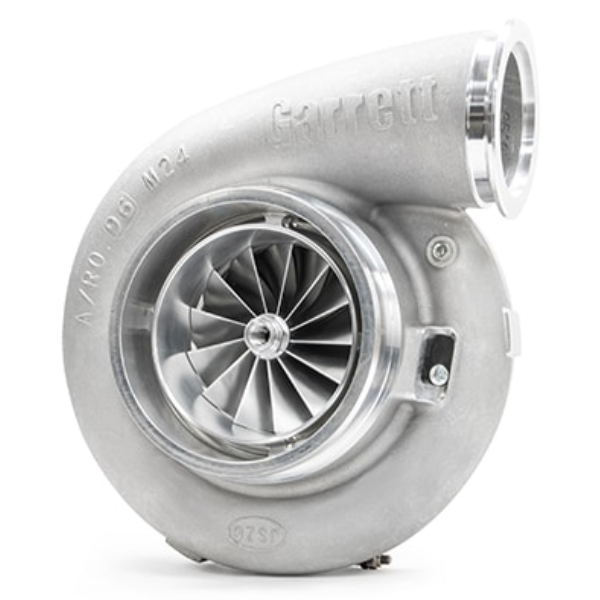

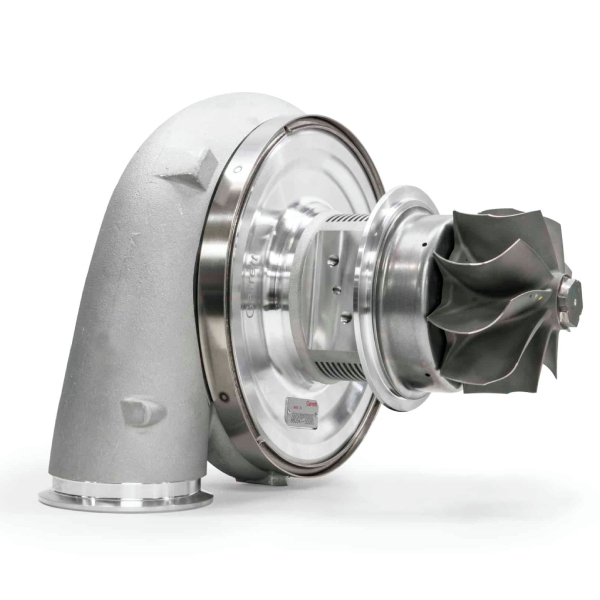

Garrett Turbochargers grt880547-5029S G57-2750 102mm .96 A/R Super Core

Fits Vehicle:

Universal

SKU: grt880547-5029S

G-Series G57-2750 102mm

Reference Data

Horse Power – 1400-2750

Displacement – 3.0L-12.0L

Supercore – G57-2750

PN – 880547-5029S

Compressor

Inducer – 102mm
Exducer – 144mm
A/R – 0.96

Turbine

Inducer – 118mm
Exducer – 112mm
Trim2 – 90

Features

• Supports up to 2750 horsepower
• 102mm compressor inducer | 133mm compressor exducer
• 118mm turbine inducer | 112mm turbine exducer
• 28% more turbine flow (compared to GTX) see graph below
• One-piece aluminum center housing
• 16mm dual ceramic ball bearing cartridge
• Outline interchangeable with GTX Gen II turbos
• Stainless Steel turbine kit sold individually. 1.09 A/R, 1.25 A/R, 1.41 A/R

• G57-2750 (102mm Compressor Inducer) 880547-5029S

Brand

Garrett
