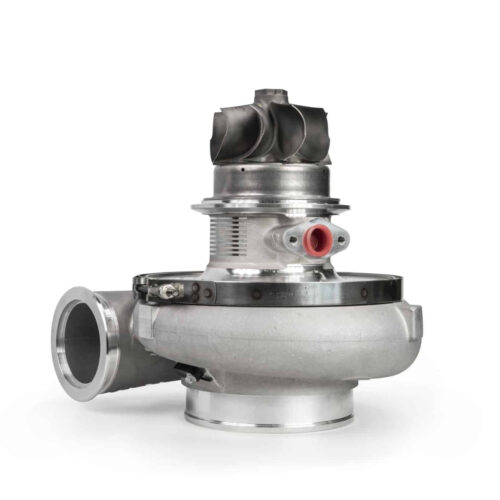

Garrett Turbochargers grt888169-5003S G45-1125 Super Core Standard Rotation

Fits Vehicle:

Universal

SKU: 888169-5003S

G-Series G45-1125 67mm

Reference Data

Horsepower – 600-1125

Displacement – 2.0L-8.0L

Supercore – Standard Rotation

PN – 888169-5003S

Features

• G45-1125 compressor aero increases flow up to 10% (compared to GTX4502R 67mm)
• 67mm compressor inducer | 102mm compressor exducer
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 14% (compared to GTX45R)
• Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with supercore
• Stainless steel turbine housings available in T4 divided inlet
• Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter

G45-1125 Part Number: 888169-5003S

Brand

Garrett
