Inducer – 54mm
Exducer – 67mm
Trim – 65
A/R – 0.70

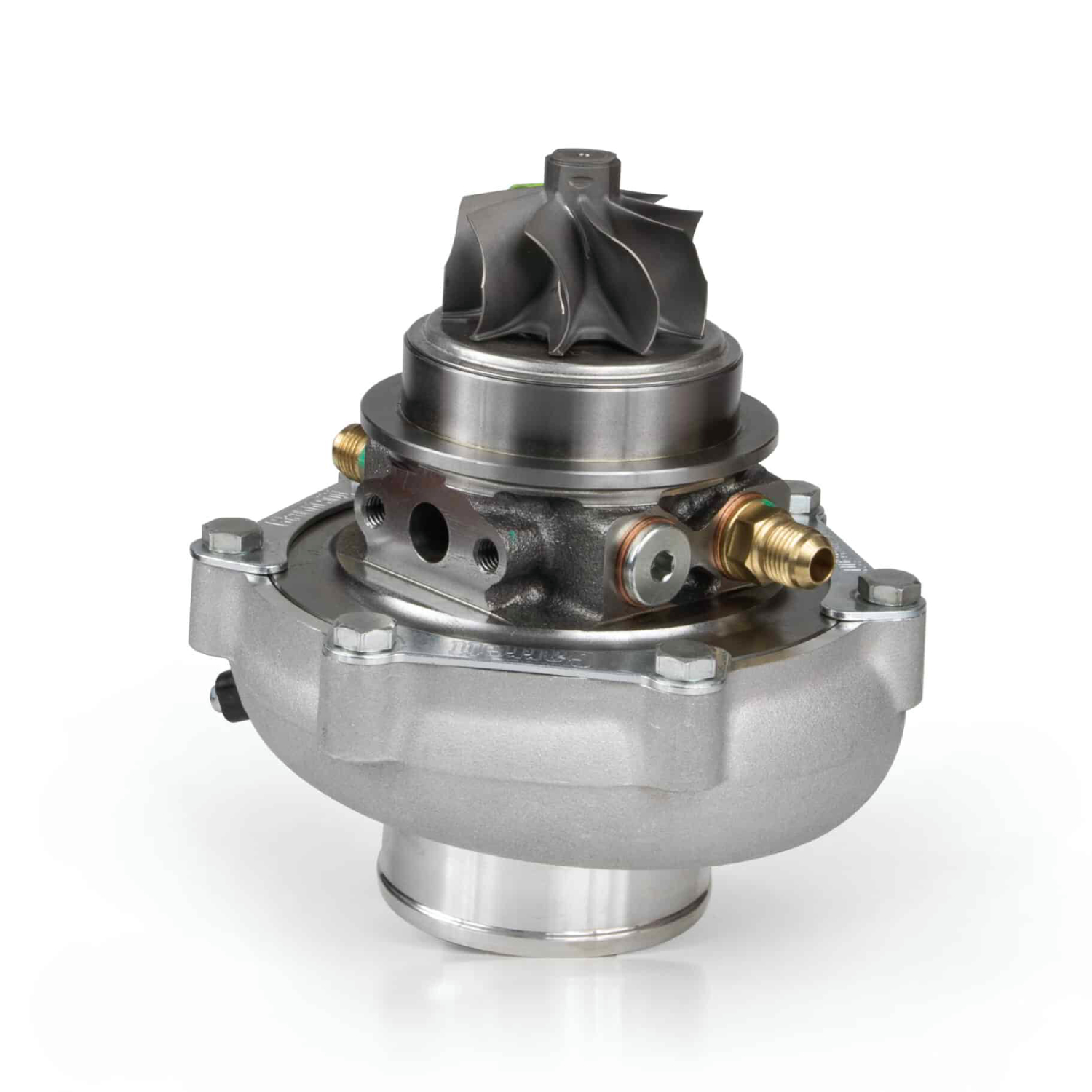

Turbine

Inducer – 60mm
Exducer – 55mm
Trim – 84

Features

• New compressor aero technology increases power and performance.
• Direct upgrade path for Gen I customers with just a CHRA purchase.
• G-Series II utilizes Gen I compressor and turbine housings.
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
• Calibration required to take advantage of increased flow for a horsepower upgrade.
• Increased efficiency at high flow rates.
• Standard and reverse rotation configurations in Supercore, CHRA, and Turbo models.
• Mar-M alloy turbine wheel rated up to 1050° C.
• Stainless steel turbine housings are rated up to 1050° C.
• Oil restrictor and water fittings included.
