Garrett Turbochargers grt860777-5002S G40-1150 Super Core – Standard Rotation

Fits Vehicle:

Universal

SKU: grt860777-5002S

G-Series G40-1150 71mm

Reference Data

Horse Power –  500-1150

Displacement – 2.0L-6.0L

Supercore – Standard Rotation

PN – 860777-5002S

Features

• G Series compressor aero increases flow up to 32% (compared to GTX4088R)
• 62mm and 71mm compressor inducer sizes
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 16% (compared to GTX4088R)
• Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core

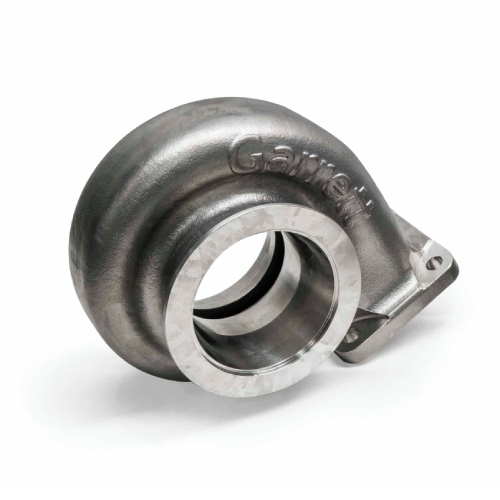

• Stainless steel turbine housings available with T4 twin scroll inlet and V-band Inlet
• T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models

Brand

Garrett
